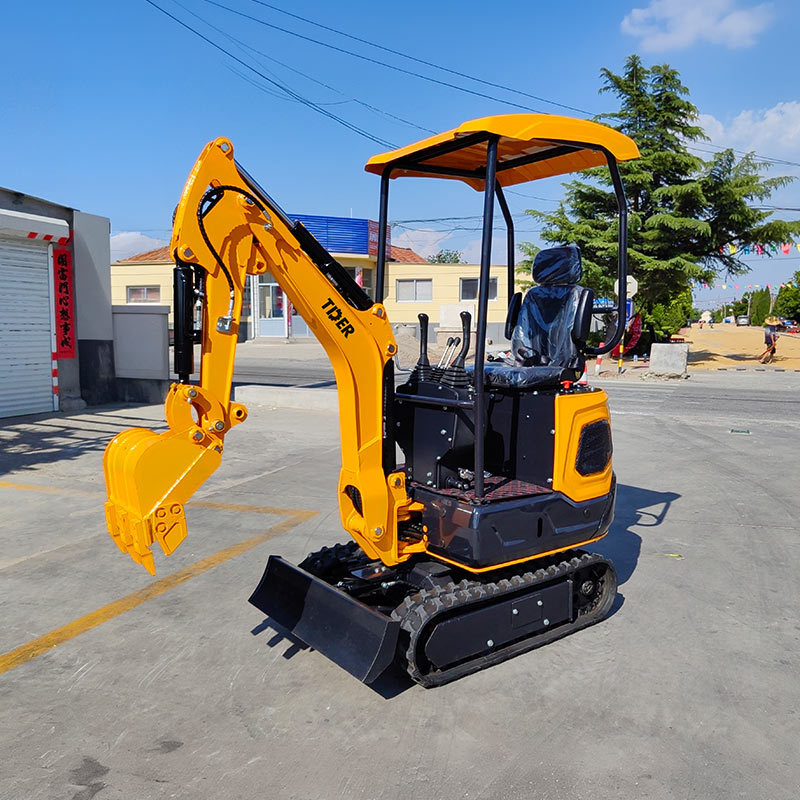

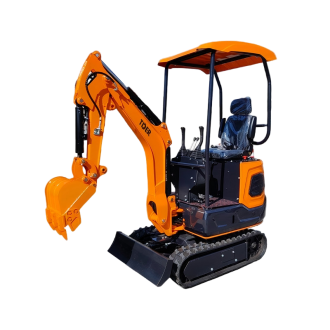

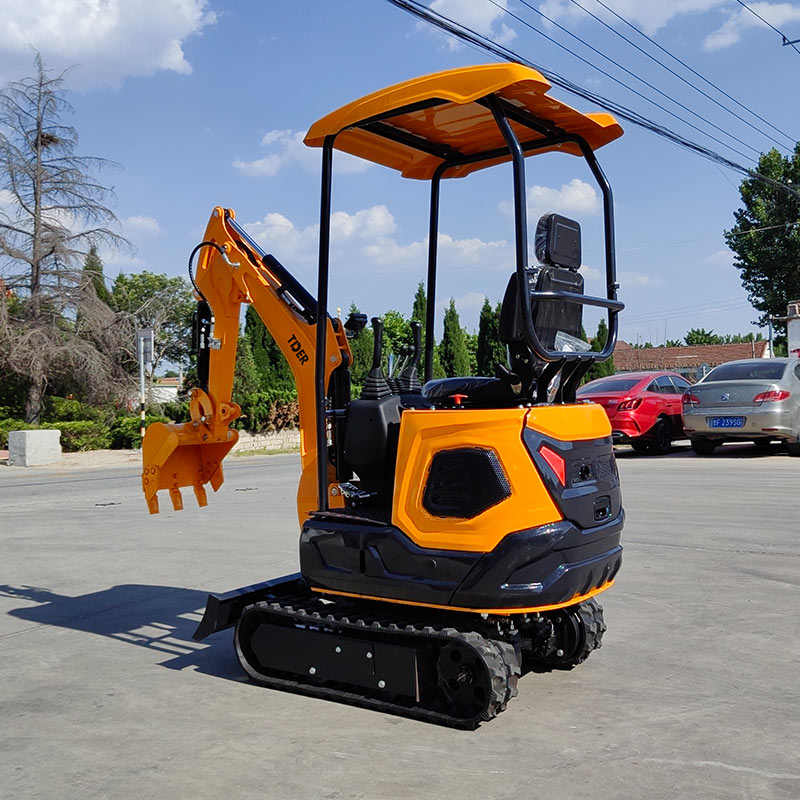

1.2 Ton Mini Excavator
TCE12A

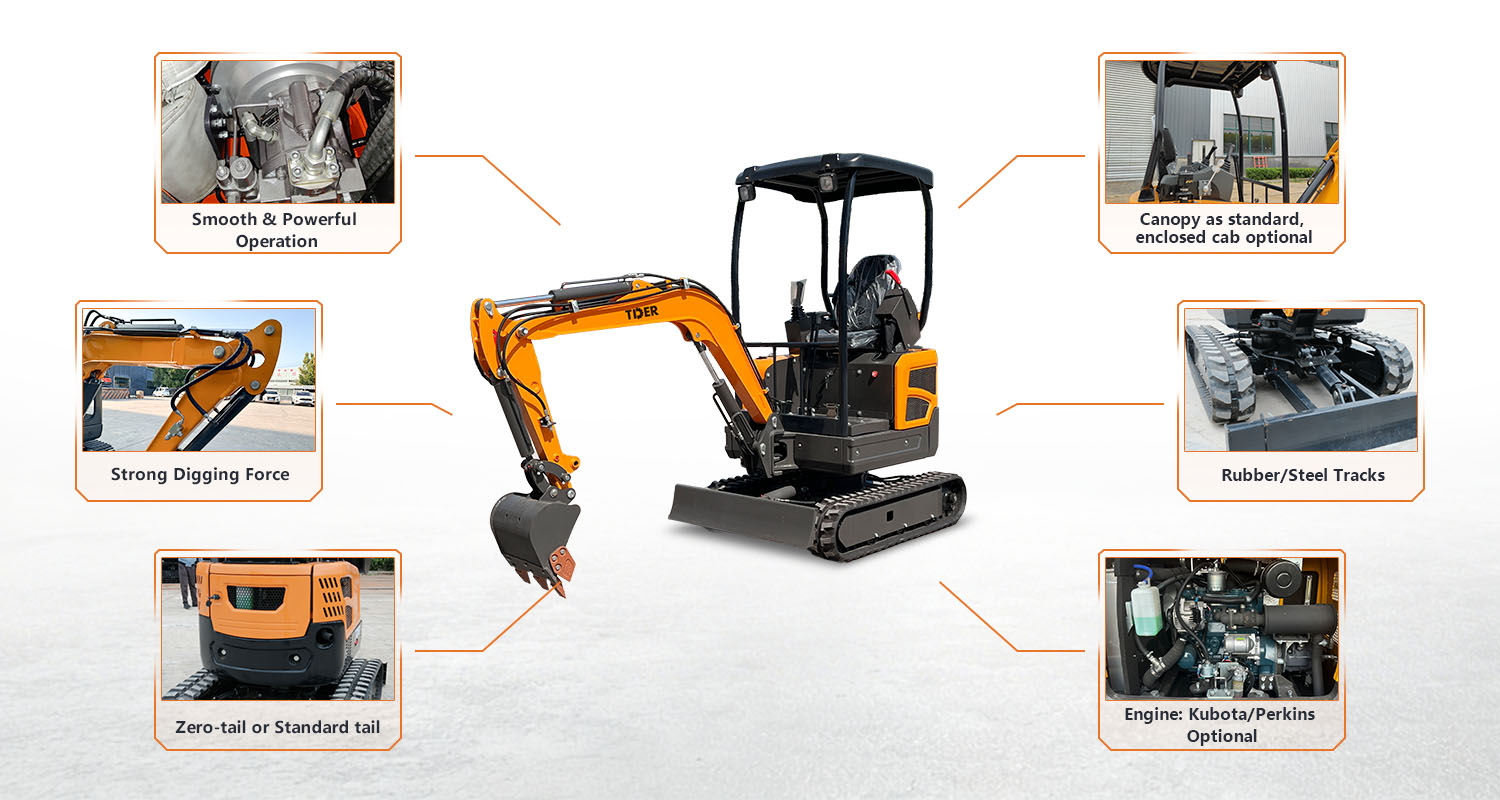

Features
Reinforced Structure and Cast Iron Counterweight
The TCE12A is built around a 950 kg operating weight with a compact 40 cm bucket, making it suitable for landscaping, small construction, and confined urban job sites. Its cast iron counterweight improves balance and lifting stability, allowing smoother operation when handling uneven loads or working on soft ground.
Hidden Hydraulic Lines and Elevated Boom Design for Greater Durability
The machine adopts a hidden hydraulic hose layout on the boom, reducing exposure to impact, abrasion, and external damage during tight excavation work. Combined with an upward-lift boom structure, the design improves working clearance and durability, especially in narrow trenches or obstacle-rich environments.
Upgraded Rotation System for Improved Reliability and Leak Resistance
Equipped with a larger swing motor, the TCE12A delivers stronger rotational stability and enhanced reliability during continuous operation. The upgraded system is designed to reduce the risk of oil leakage and improve long-term durability, making it more suitable for frequent daily use in small engineering projects.
Flexible Power Options with Kubota EPA/Euro V Engine Choice
The TCE12A is powered by a KOP 192F engine (8.6 kW) as standard, with optional Kubota D722 EPA/Euro V certified engine available. This allows users to choose between cost-efficient local power or globally recognized low-emission engines based on jobsite requirements and regional regulations.
Operator-Friendly Design with Easy Maintenance Access
Designed with operator convenience in mind, the TCE12A features a forward-tilting seat and rear engine hood, allowing easier inspection and maintenance. The ergonomic seat with armrests and head support improves operator comfort during long working hours, while integrated gauges such as voltmeter and hour meter provide clear machine status monitoring.
Specifications
| Operating Weight | Kg | 1200 |
| Engine Model | KOOP192F | |
| Rated Power | Kw | 8.6kw/12hp |
| Bucket Capacity | m³ | 0.02 |
| Bucket Width | mm | 400 |
| Max Digging Force | Kn | 10.3 |
| System Working Pressure | Mpa | 18 |
| Swing Speed | rpm | 12 |
| Traveling Speed | km/h | 2 |
| Gradeability | ° | 30 |
| Ground Pressure | Kpa | 22 |
| Operating Range | ||
| Max. Digging Distance | mm | 2450 |
| Max. Digging Depth | mm | 1320 |
| Max. Digging Height | mm | 2500 |
| Max. Dumping Height | mm | 1820 |
| Min. Turning Radius | mm | 1190 |
| Overall Dimensions | ||
| Overall Length | mm | 2200 |
| Overall Width | mm | 940 |
| Overall Height | mm | 2150 |
| Min. Ground Clearance | mm | 380 |
| Track Ground Length | mm | 1200 |
| Track Width | mm | 180 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
Gallery
FAQs
Related Products
-
1.2 Ton Electric Mini Excavator for Sale with CATL Battery- Engine Power:
6.5 kW
- Operating Weight:
1200 kg
- Dig Depth:
1650 mm
- Engine Power:
-
13 Ton Chinese Electric Excavators with Kawasaki Hydraulic System- Engine Power:
37 kW
- Operating Weight:
13000 kg
- Dig Depth:
5501 mm
- Engine Power:
-
21 Ton Electric Excavator for Sale with Cable Power System- Engine Power:
55 kW
- Operating Weight:
21500 kg
- Dig Depth:
6525 mm
- Engine Power:
-
0.8 Ton Mini Excavator with Euro 5 Engine- Engine Power:
7 kW
- Operating Weight:
760 kg
- Dig Depth:
1715 mm
- Engine Power:
-
1 Ton Mini Excavator for Construction & Landscaping- Engine Power:
7 kW
- Operating Weight:
880 kg
- Dig Depth:
1715 mm
- Engine Power:
-

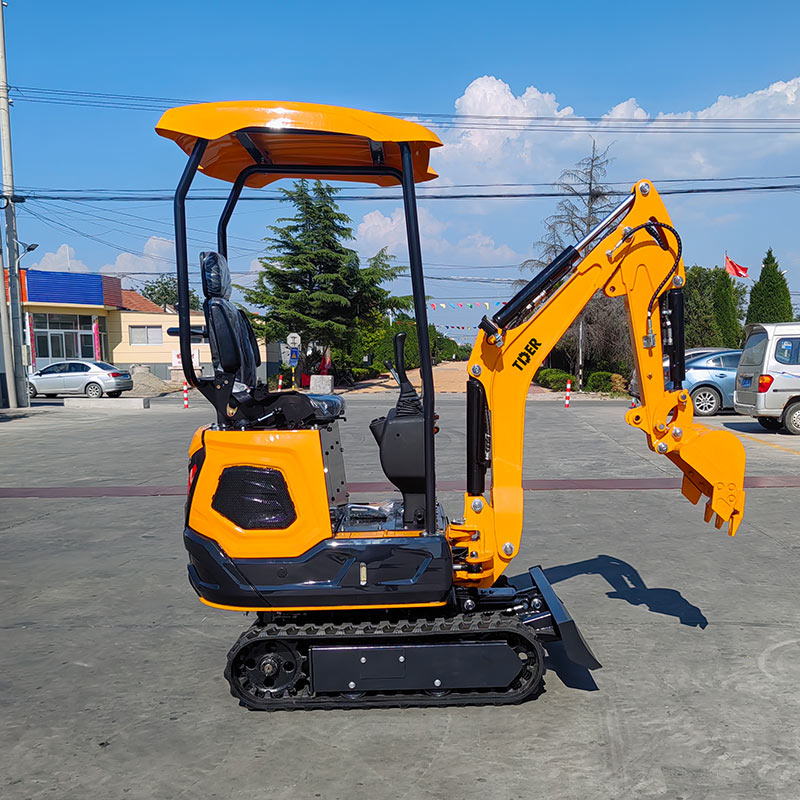

1.2 Ton Mini Excavator Kubota Engine Option for Site Work- Engine Power:
