21 Ton Crawler Excavator
TCE210

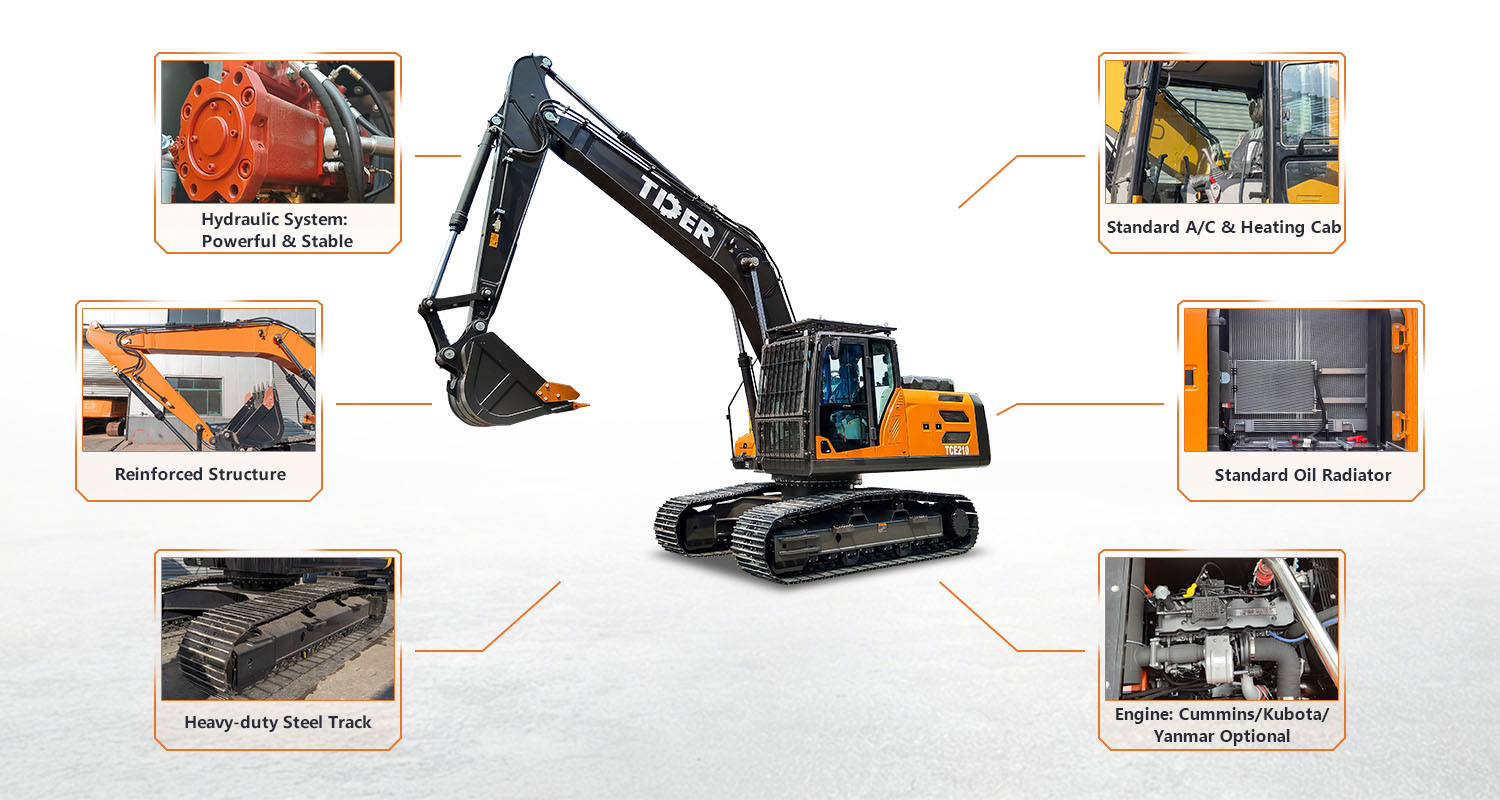

Features
Powered by Weichai Engine for Heavy Duty Construction Work
The TCE210 is designed for heavy-duty construction applications, combining strong excavation capability with a 1.1 m³ bucket and a 129 kW Weichai engine. It delivers stable power output and reliable performance for large-scale earthmoving, infrastructure, and demanding jobsite operations.
Optimized Bucket Design for Higher Efficiency & Lower Resistance
Standard soil bucket is included, with optional rock bucket for different applications. The bucket profile is optimized to reduce digging resistance by 5%, improving overall efficiency by 8%–15% for smoother excavation performance.
Comfort Cab with Optional Lift Function for Better Visibility
The TCE210 features a sealed cab with air conditioning and a shock-absorbing seat, reducing operator fatigue and improving comfort during long working hours. An optional hydraulic lifting cab further enhances visibility, reducing blind spots and improving safety in port handling, railway bulk material unloading, and metal recycling applications.
Wider Track Option for Better Ground Stability
The machine supports a wider track configuration, increasing ground contact area and improving stability. This upgrade enhances performance on soft soil, muddy terrain, and challenging construction environments.
8 Roller Undercarriage for Better Load Distribution & Durability
Equipped with 8 carrier rollers, the undercarriage provides better load distribution, improved stability, and reduced track wear, extending service life and enhancing reliability under heavy-duty operation.
Specifications
| Operating Weight | Kg | 21000 |
| Engine Model | Wechai WP6G175E21 | |
| Rated Power | Kw | 129 |
| Bucket Capacity | m³ | 1.0 |
| Swing Speed | rpm | 11 |
| Traveling Speed | km/h | 2.4-4.3 |
| Gradeability | ° | 30° |
| Hydraulic System | ||
| Rated flow of main pump | L/min | 450 |
| Main safety valve pressure | MPa | 32 |
| Hydraulic Pump | PNM | |
| Operating Range | ||
| Max.digging reach | mm | 9580 |
| Max. Digging Depth | mm | 6480 |
| Max. Digging Height | mm | 9410 |
| Max. Dumping Height | mm | 6730 |
| Min. Swing Radius | mm | 3555 |
| Overall Dimensions | ||
| Overall Length | mm | 9590 |
| Overall Width | mm | 2500 |
| Overall Height(cab top) | mm | 3060 |
| Track Width | mm | 600 |
| Track Length | mm | 4159 |
