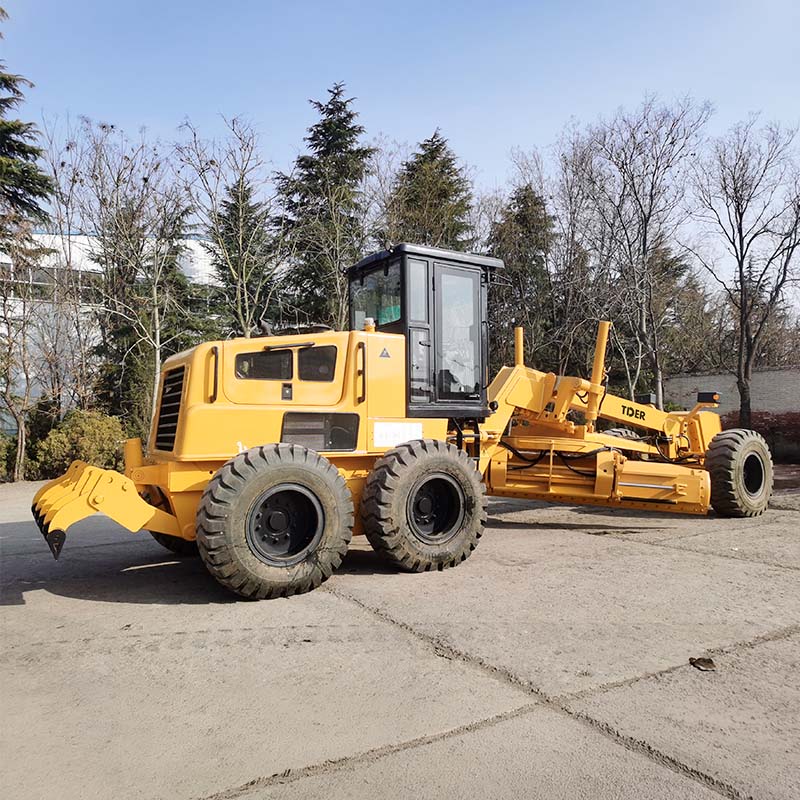

180HP Motor Grader
TG180
Features
Cummins High-Performance Power System
Equipped with a genuine Cummins 6BTA5.9 turbocharged diesel engine, the machine delivers strong and stable 132kW output, ensuring sufficient power reserve for heavy-duty grading, road leveling, and continuous earthmoving operations under complex site conditions.
Advanced Electro-Hydraulic Transmission System
The Hangchi 6F/3R electro-hydraulic power shift transmission provides smooth gear shifting and optimized power delivery, improving operational efficiency while reducing driver fatigue during frequent speed changes in grading applications.
High-Precision Moldboard Grading System
The 3965mm large moldboard combined with hydraulic blade control ensures precise leveling performance, allowing accurate ground shaping, slope finishing, and road surface refinement with high efficiency and consistency.
Heavy-Duty Articulated Frame Steering System
With a minimum turning radius of 7800mm and fully hydraulic articulation, the machine delivers excellent maneuverability and adaptability in narrow or complex construction environments such as road shoulders, municipal works, and site preparation.
Stable Load Distribution Chassis Design
Optimized front and rear axle load distribution improves traction stability and working balance, ensuring reliable performance under heavy grading loads while reducing vibration impact on the operator and key components.
Comfortable Air-Conditioned Operator Cabin
The factory-equipped air-conditioned cab provides a comfortable working environment with enhanced visibility, helping operators maintain precision control and reduce fatigue during long-hour road construction and grading tasks.
Reliable Global Tire Configuration System
Equipped with premium tire options from brands such as Advance, Xulun and Aeolus (random delivery), the system ensures strong ground grip, wear resistance, and adaptability across different soil and road conditions.
Specifications
| Self Weight | kg | 16000 |
| Front Axle Load | kg | 5820 |
| Rear Axle Load | kg | 10850 |
| Max Forward Speed | km/h | 38.2 |
| Max Reverse Speed | km/h | 24.5 |
| Gear System | — | F6/R3 |
| Turning Radius | mm | 7800 |
| Hydraulic System Pressure | MPa | 18 |
| Blade Size (L×H) | mm | 3965×610 |
| Front Wheelbase | mm | 2150 |
| Rear Wheelbase | mm | 2340 |
| Wheelbase | mm | 6362 |
| Engine Model | — | Cummins 6BTA5.9 |
| Engine Power | kW | 132 |
| Overall Dimensions | mm | 8305×2695×3420 |
