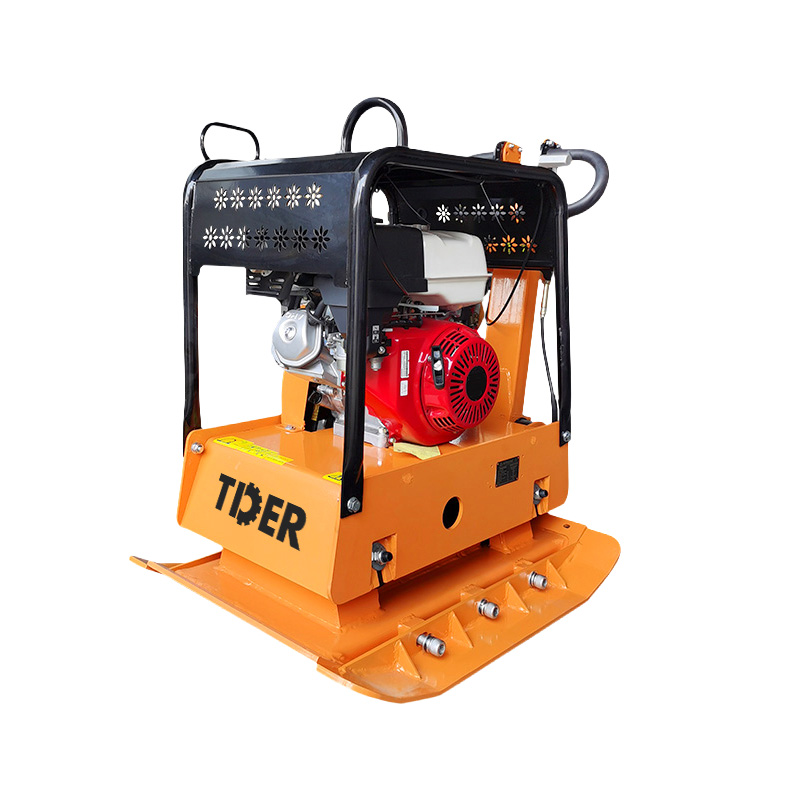

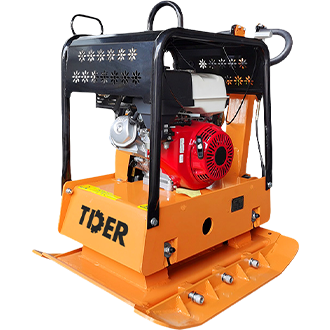

Vibratory Plate
TRP256
سمات
Three Engine Choices for Different Operating Preferences
The TRP256 is available with Honda GX390 gasoline, 190F gasoline or 186FA diesel engines, giving customers greater flexibility when choosing the power source. With engine options commonly supported in different markets, parts sourcing and routine service can also be more convenient.
256 kg Operating Weight for More Effective Compaction
With an operating weight of 256 kg, the TRP256 provides a heavier working platform for applications that require stronger downward force from the machine itself. This makes it well suited to demanding compaction work where a lighter plate may require more passes.
Dual-Eccentric Vibration for Productive Working Cycles
The dual-eccentric-shaft vibrator generates the working vibration needed for repeated compaction passes. Its robust construction is designed to support continuous operation while maintaining effective vibration output throughout the working cycle.
Forward and Reverse Control for Flexible Jobsite Movement
The mechanical control handle allows the operator to move the TRP256 in both forward and reverse directions. The adjustable handle height also helps adapt the machine to different operators and working positions.
Impact-Resistant Construction for Repeated Compaction Work
AThe TRP256 uses ductile high-strength steel plates designed to withstand repeated impact and vibration. This provides a solid working structure for jobsites where the machine is exposed to frequent compaction cycles and rough ground conditions.
Protected Belt Drive for Dusty Compaction Environments
A sealed belt cover helps keep sand, soil and other debris away from the belt-drive area. This added protection helps maintain cleaner drive components when the machine is working in dusty or abrasive conditions.
تحديد
| Centrifugal Force | kN | 38 |
| Compaction Depth | cm | 45 |
| Plate Size (L × W) | mm | 835 × 670 |
| Frequency | Hz | 63 |
| Max. Travelling Speed | m/min | 25 |
| Packing Size | mm | 1000 × 600 × 1150 |
| Engine Manufacturer | — | HONDA |
| Engine Model | — | GX390 |
| Rated Power | hp | 13 |
| Operating Weight | kg | 256 |
*ملاحظة: تخضع المواصفات والتكوينات للتغيير نتيجةً للتحديثات والتحسينات المستمرة للمنتج دون إشعار مسبق. جميع المعلومات للاسترشاد فقط، وبعض الميزات اختيارية. يُرجى التواصل مع فريق المبيعات الدولي لدينا للتأكيد. تخضع المواصفات والتكوينات النهائية للعقد الرسمي المُوقع من كلا الطرفين.
