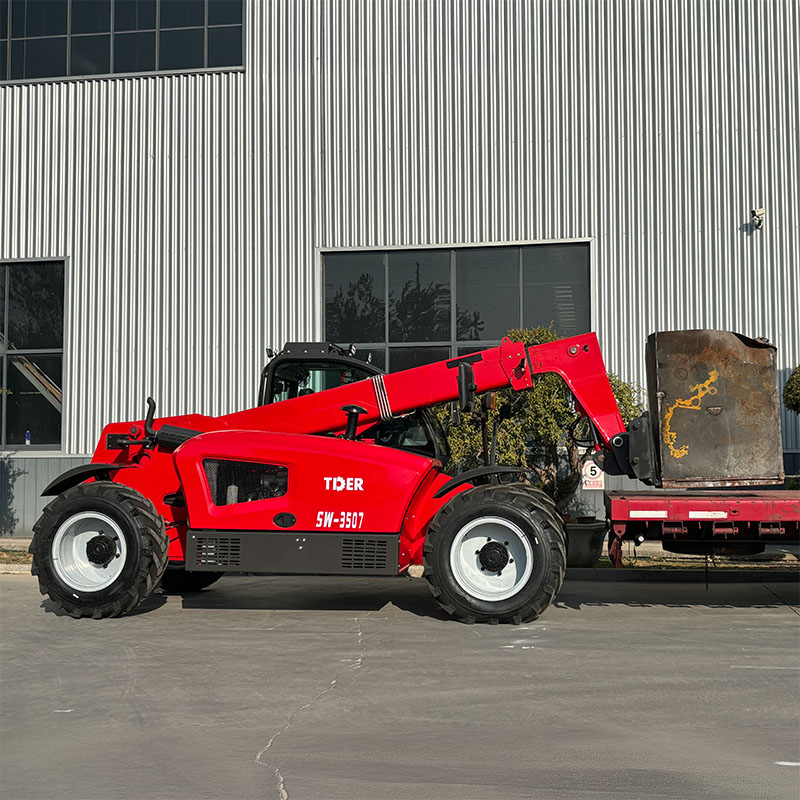

3.5 Ton Telehandler
FT35
سمات

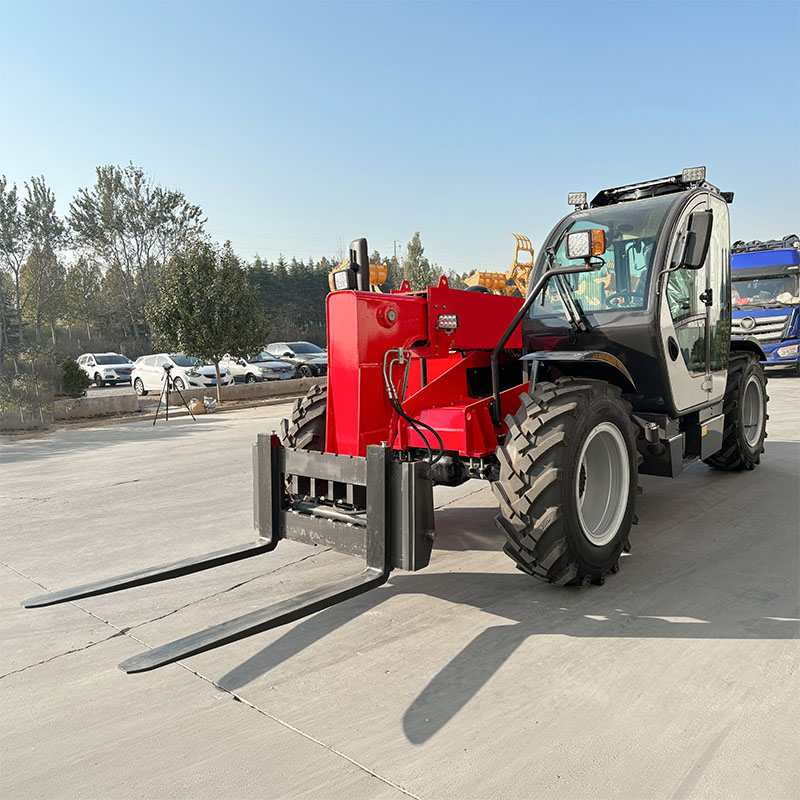

Stable lifting with precise fork handling
The FT35 telescopic handler combines a compact structure with stable lifting performance, precise fork positioning and a high net load capacity. Its balanced design helps operators handle, transport and position loads efficiently in demanding material-handling applications.

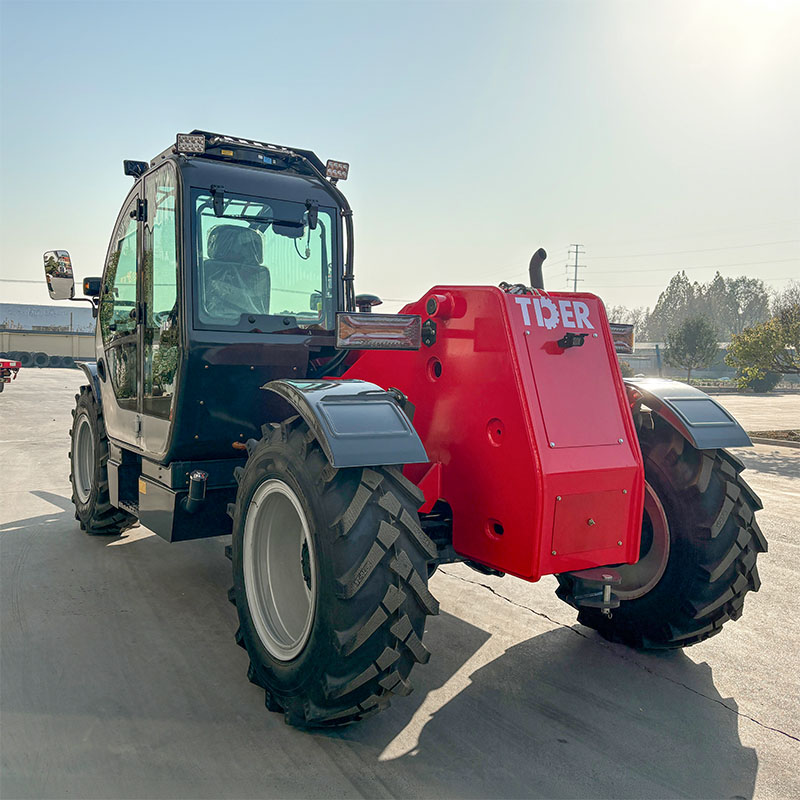

Optional Cummins engine for demanding applications
The FT35 can be equipped with an optional Cummins engine, providing strong power and high torque reserve for demanding material-handling operations. The available engine configuration also offers low noise and emissions for reliable day-to-day performance.
Torque limitation for safer heavy-load operation
A dedicated torque limit system helps the FT35 maintain operational safety under challenging working conditions. It provides additional protection when handling loads at demanding boom positions or during heavy-duty lifting operations.
Automatic fork leveling during boom movement
The automatic flow compensation system keeps the forks level as the boom luffs. This helps maintain load stability and improves safety when lifting and transporting materials at greater heights.
Frame leveling improves adaptability on uneven sites
The frame horizontal leveling function allows the FT35 to adapt more effectively to uneven and complex working surfaces. This improves machine stability and helps operators work with greater confidence across different jobsite conditions.
Intelligent control system keeps operation straightforward
An advanced human-machine interaction system integrates instrument monitoring and alarm functions into an easy-to-use interface. Operators can monitor key machine conditions and respond quickly to abnormal situations during daily work.
Reliable hydraulic braking for confident travel
The optional full hydraulic wet braking system provides stable and reliable braking performance. It is designed to improve driving safety and control during frequent travel between loading, lifting and unloading areas.
Efficient transmission options for smooth power delivery
The FT35 can be equipped with an imported fully electronically controlled gearbox and axle. The compact drivetrain design and high transmission efficiency help the telescopic telehandler deliver smooth power transfer and responsive operation during frequent lifting and travel cycles.
تحديد
| Dimensions | Overall Length | mm | 5100 |
| Overall Length Including Forks | mm | 6300 | |
| Overall Width | mm | 2250 | |
| Overall Height | mm | 2500 | |
| Operating Weight | kg | 7300 | |
| Cab | Cab Interior Width | mm | 950 |
| Dimensions | Wheel Tread | mm | 1820 |
| Wheelbase | mm | 3400 | |
| Ground Clearance | mm | 400 | |
| Outside Turning Radius | mm | 5000 | |
| Fork/Carriage | Carriage Rollback Angle | ° | 60 |
| Carriage Upward Angle | ° | 45 | |
| Tires | Tire Size | — | 16/70-24 |
| Capacities | Fuel Tank Capacity | L | 110 |
| Hydraulic Oil Tank Capacity | L | 75 | |
| Travel | Maximum Travel Speed | km/h | 30 |
| Lifting | Rated Load Capacity | kg | 3500 |
| Maximum Lift Height | mm | 7000 | |
| Hydraulic System | Operating Pressure | MPa | 21 |
| Engine | Emission Standard | — | China Stage II |
| Manufacturer | — | Yuchai | |
| Engine Model | — | YCD4J22T-115 | |
| Rated Power | kW | 85 | |
| Drive System | Drive Mode | — | Hydrostatic Drive |
| Drive Type | — | 4×4 | |
| Steering | Steering Modes | — | 2-Wheel, 4-Wheel, Crab Steering |
*ملاحظة: تخضع المواصفات والتكوينات للتغيير نتيجةً للتحديثات والتحسينات المستمرة للمنتج دون إشعار مسبق. جميع المعلومات للاسترشاد فقط، وبعض الميزات اختيارية. يُرجى التواصل مع فريق المبيعات الدولي لدينا للتأكيد. تخضع المواصفات والتكوينات النهائية للعقد الرسمي المُوقع من كلا الطرفين.
