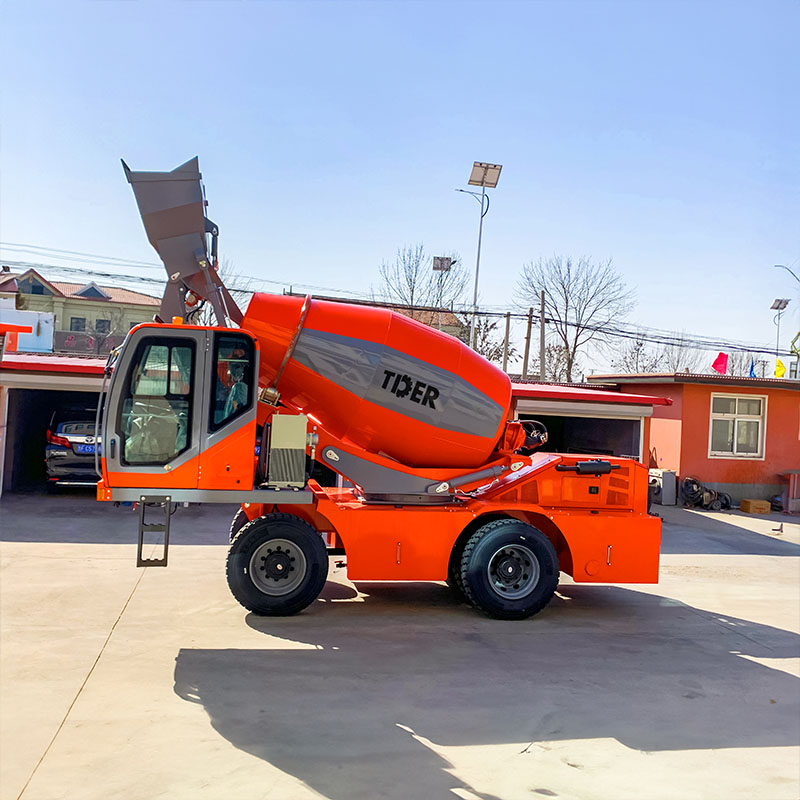

4.2m³ Concrete Mixer Truck
TCM42

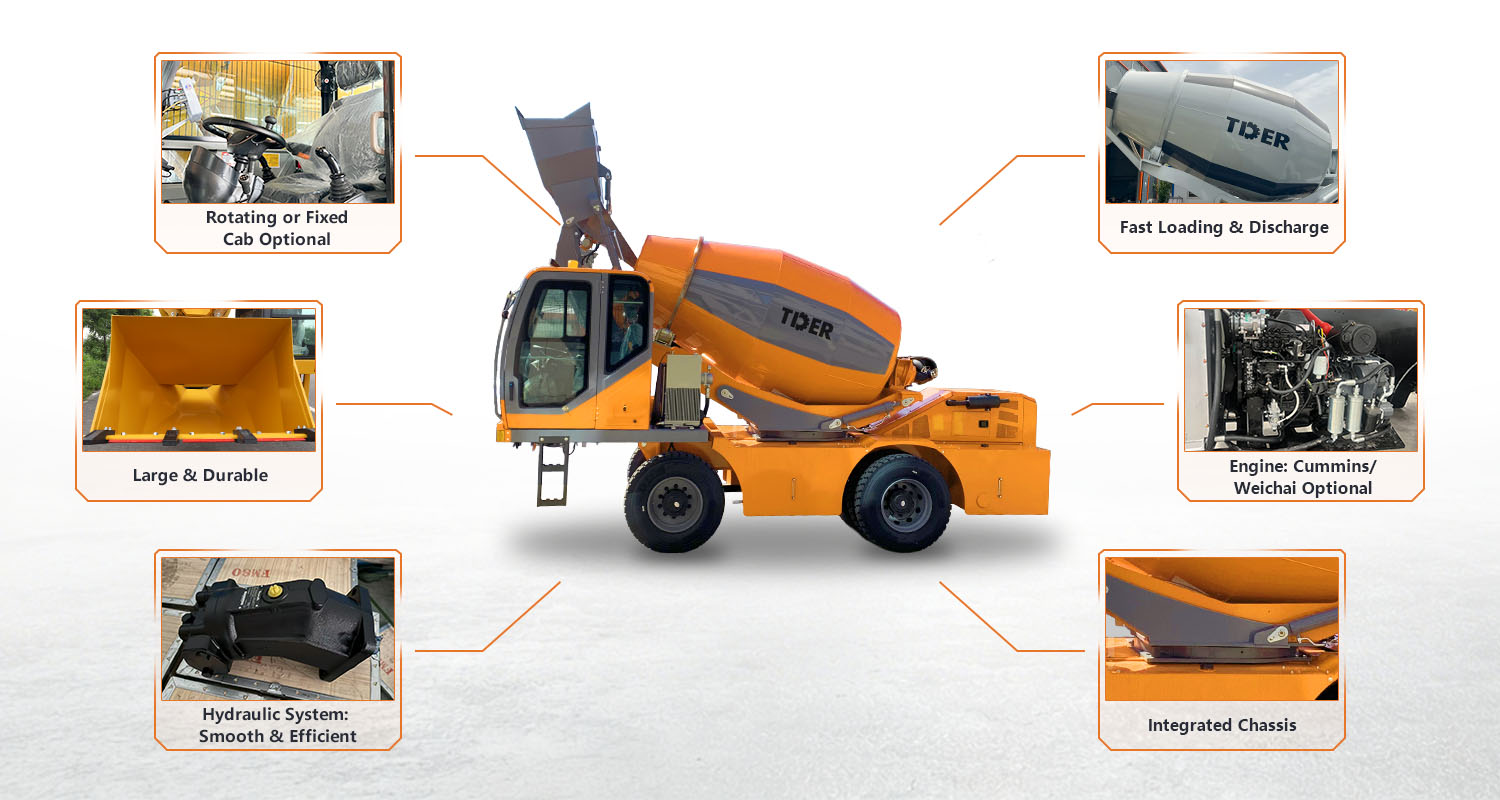

Features

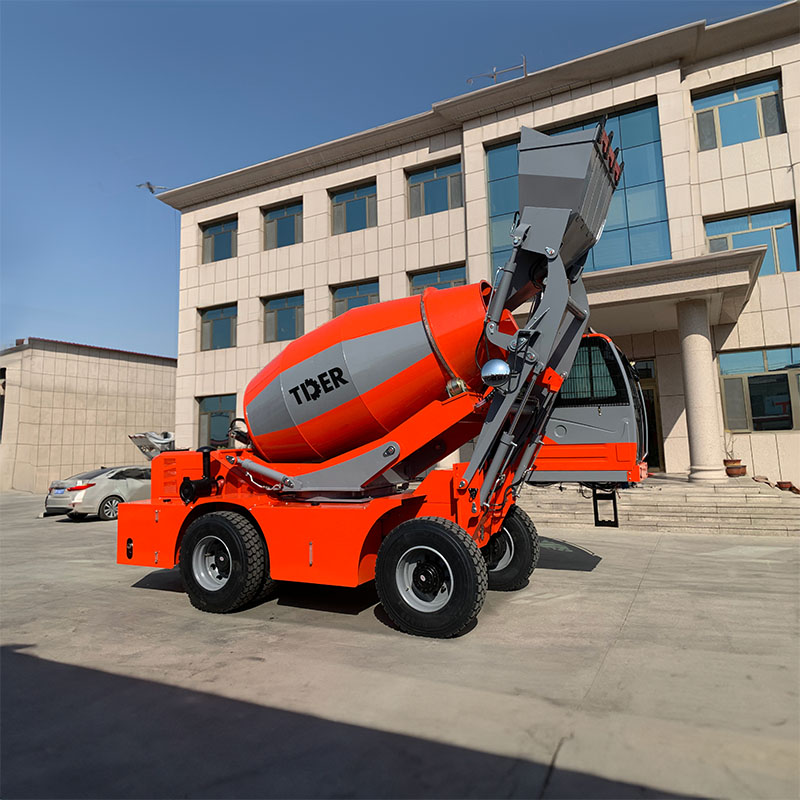

Reinforced One-Piece Frame for Heavy-Duty Stability
The one-piece chassis structure significantly improves load-bearing capacity and torsional strength, making it suitable for harsh construction conditions such as rough roads, heavy loads, and muddy environments. The independently rotating 270° drum improves material discharge flexibility and supports large-scale concrete applications in construction and rural infrastructure projects.
High-Efficiency Hydraulic Drive with Rexroth Axial Piston Motor
Equipped with a Rexroth axial piston motor with integrated flow distribution and output shaft design, the system ensures higher hydraulic precision and improved mechanical efficiency, delivering smoother and more stable power transmission under heavy-duty working conditions.
Rollover-Protected Cab for Enhanced Operator Safety
The reinforced tubular ROPS cab structure is designed to reduce injury risk in rollover situations. High-strength materials and precision welding improve impact resistance and durability, providing reliable protection for operators in demanding construction environments.

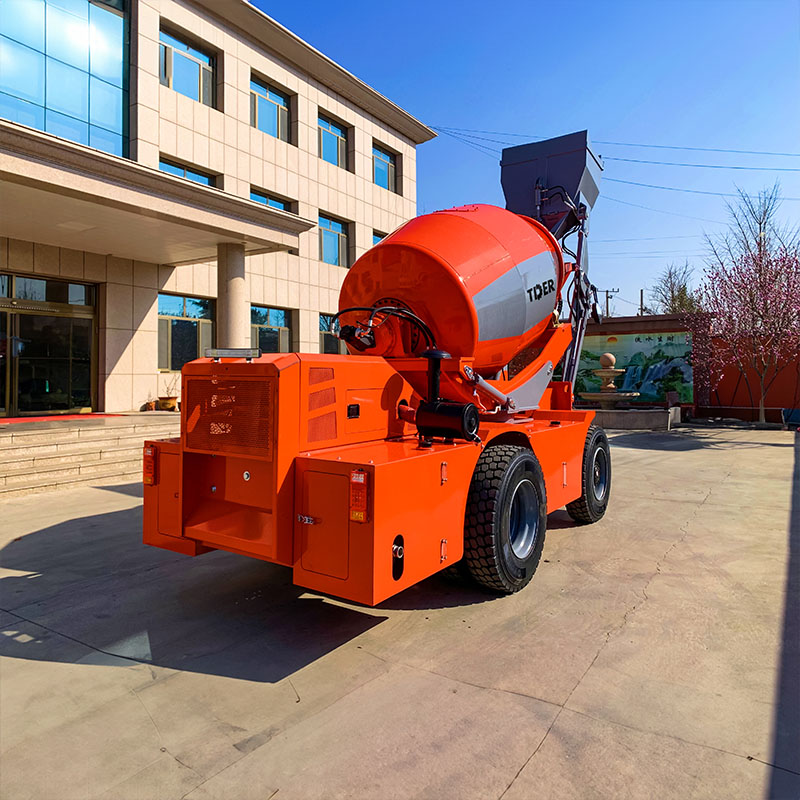

Easy Maintenance Rear Hood with Multi-Function Utility Design
The rear-opening engine hood is supported by automatic lifting rods for convenient daily maintenance. A rear towing hook allows short-distance towing of equipment up to 2 tons, improving field mobility and operational flexibility.
Dust-Resistant Air Filtration System for Engine Protection
The desert-grade air filtration system effectively removes dust and fine particles from incoming air, reducing engine wear and improving long-term reliability in dusty, sandy, and harsh working environments.
Specifications
| Output Per Lot | 4.2 cubic metres |
| Drum Rotation | Discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered |
| Capacity | Up to 5 batches per hour, 20 cubic hours |
| Engine | Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW |
| Drive Mode | The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive |
| Climb | 45° |
| Speed | Dual altitude, low speed 0-25kph, high speed 0-40 kph |
| Driver'S Seat | Closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed |
| Hydraulic System | Open oil inlet, axial piston motor, two gear pumps to participate in the work |
| Joystick | Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank |
| Bucket | 0.7 cubic, hydraulic gate |
| Clay Groove | Equipped with one 150CM Removable Chute to increase the length of discharge |
| Water Supply System | Self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine |
| Braking | Internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels |
| Steering | Assisted by a hydraulic power steering system on two steering wheels |
| Tire | 12R-22.5 steel wire high pressure vacuum tire |
| Power System | 24V |
| Fuel Tank / Water Tank | 2 * 380 Litres Water tank, diesel fuel tank 180litres, hydraulic fuel tank 180 litres |
| Weight | 9,500 kg |
| Length, Width, Height / Wheelbase / Wheelbase | 7500mm*2950mm*3500mm*2590mm*2200mm |
| Turning Radius | 5860mm |
| Other | Q345 manganese steel frame, excavator luxury cab, driving image, cement bucket, air conditioning |
