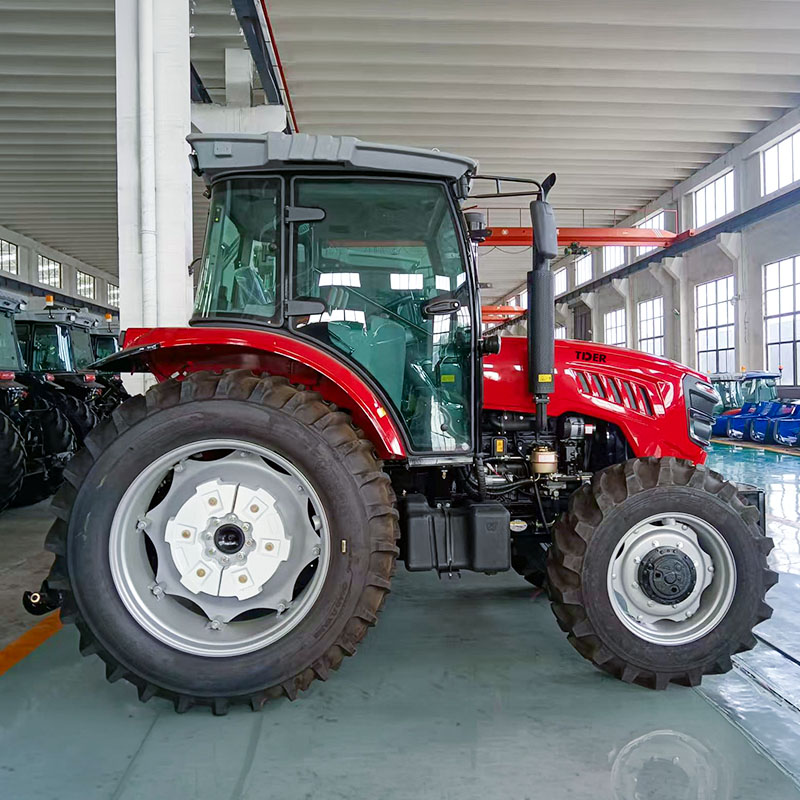

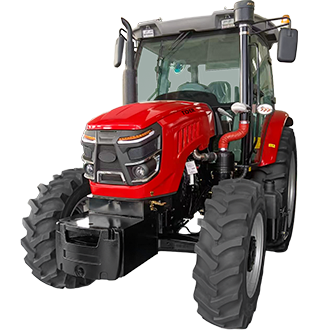

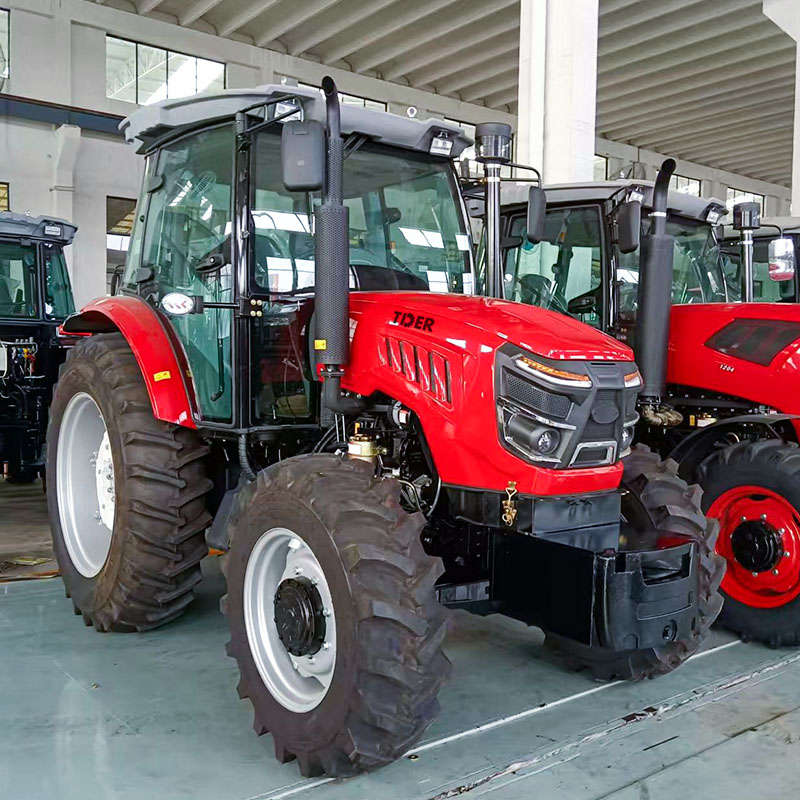

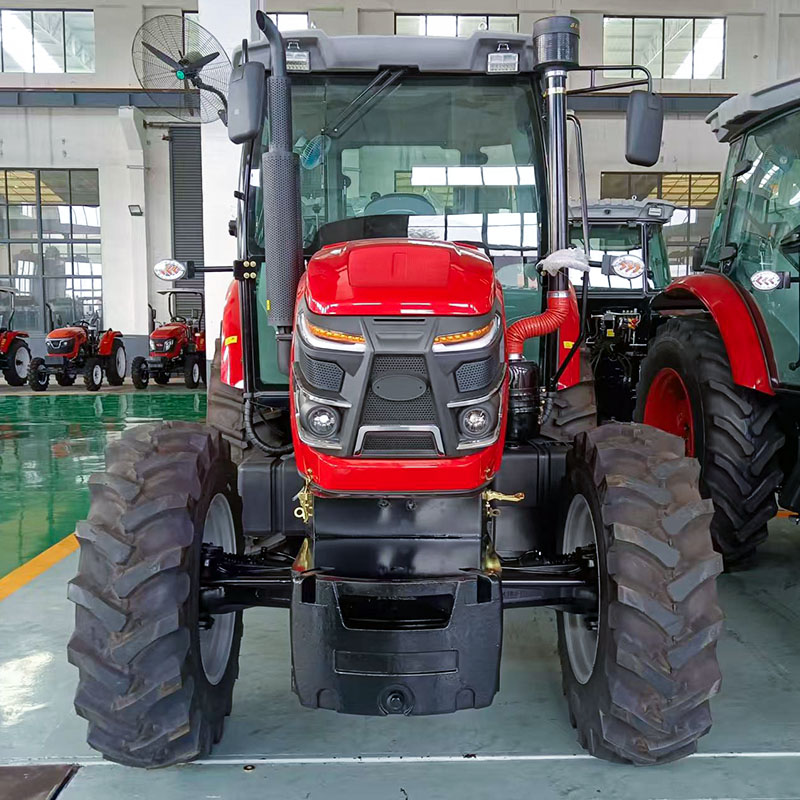

Name: 110HP Tractor for Farm Machinery Applications
Availability: InStock

سمات
تحديد
عرض المنتجات
الأسئلة الشائعة
المنتجات ذات الصلة

سمات

Reduced Operator Effort During Repeated Operations

The TD1104 uses a pneumatic-assisted clutch pedal together with hydraulic steering to reduce physical effort during frequent clutch and steering operations. This is particularly valuable when field work involves repeated maneuvering throughout a long working day.

Four-Cylinder Power for Sustained Agricultural Loads

The Dongfanghong LR4M3Z four-cylinder diesel engine provides the 110HP power platform required for cultivation, transportation, and demanding field applications. Its power reserve supports continuous agricultural work without making engine output the sole focus of the machine's design.

Reliable Hydraulic Braking

The hydraulic braking system uses a self-energizing structure to provide dependable braking performance with comparatively light control effort. It adds confidence when moving between field operations and transport duties.

PTO Speed Selection for Different Equipment

The 540/1000 rpm PTO configuration allows the tractor to accommodate implements with different power take-off requirements, giving operators greater freedom when selecting equipment for seasonal agricultural work.

تحديد

Drive Type	/	4-Wheel Drive (4×4)
Rated Power	kW	81
Length × Width × Height (Cabin)	mm	4560 × 2100 × 3050
Length × Width × Height (ROPS)	mm	4560 × 2100 × 2930
Wheel Base	mm	2200
Minimum Ground Clearance (Front Axle Drain Bolt)	mm	410
Minimum Operating Mass (Cabin)	kg	4250
Minimum Operating Mass (ROPS)	kg	4000
Front Tread	mm	1620 (1620–1820), Adjustable
Rear Tread	mm	1620 (1620–1820), Adjustable
Clutch Type	/	Dry-Type, Double-Acting
Engine Model	/	YTO 4-Cylinder Diesel Engine (National II Emission Standard)
Rated Speed	r/min	2300
Gear Range	/	24 Forward + 8 Reverse
PTO Type	/	8 Spline, Φ38, Type I (Optional: 6 Spline)
PTO Rated Power	kW	≥69
PTO Speed	r/min	760/1000 or 760/850 or 540/1000
Three-Point Linkage	/	Rear Mounted, Three-Point Suspension, Category II
Hydraulic Output	/	3-Group Hydraulic Valve
Hydraulic Adjustment Mode	/	Forced Hydraulic System, Position Control and Floating Control
Maximum Lifting Force at 610mm Frame Center	kN	≥20.7
Front / Rear Balance Weight	kg	440 / 90
Standard Tire Size (Front / Rear)	/	12.4-24 / 16.9-34
Optional Tire Size (Type I)	/	13.6-24 / 16.9-38
Available Options	/	Cabin, Air Brake, ROPS Safety Frame, Sunroof

عرض المنتجات

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

الأسئلة الشائعة

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
