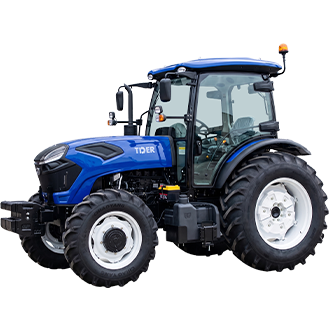

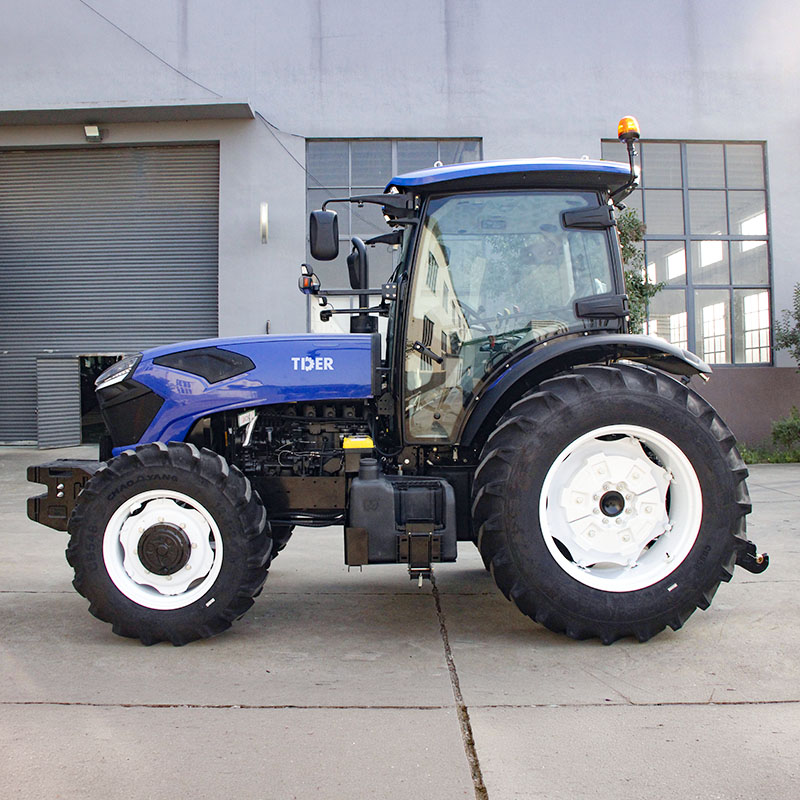

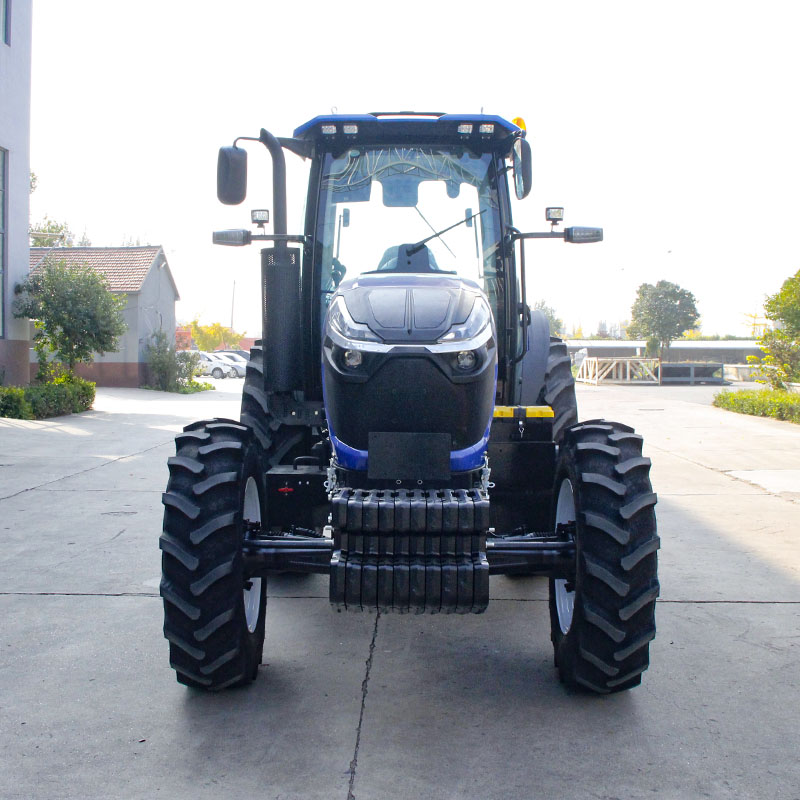

Name: 160HP Tractor Vehicle
Availability: InStock

سمات
تحديد
عرض المنتجات
الأسئلة الشائعة
المنتجات ذات الصلة

سمات

A Complete Platform for Large-Scale Farm Operations

The TD1604 brings together a high-capacity chassis, four-wheel drive, strong lifting performance, and a Category II three-point linkage to provide a comprehensive platform for large-scale agricultural work. Its configuration is suited to users who need one tractor to handle cultivation, soil preparation, transport, and multiple implement applications.

Less Downtime During Long Working Cycles

A large-capacity fuel tank helps extend the interval between refueling, while the durable mechanical layout is designed for sustained agricultural use. The large fuel capacity is particularly practical for extensive fields where frequent stops can interrupt productivity.

Hydraulic Control Adapted to Changing Soil Conditions

Rather than relying on a single depth-control method, the TD1604 provides draft, position, combined draft-position, and floating control. This gives operators more ways to respond to changing soil resistance and maintain appropriate implement behavior throughout the field.

Practical Control from the Driver's Seat

The pneumatic-assisted clutch pedal reduces clutch operating effort, while hydraulic steering provides lighter steering control. The air-conditioned cab, large field of view, and sealed operator environment further support comfortable operation during extended working periods.

تحديد

Specification	Unit	TD1604
Drive Type	/	4-Wheel Drive (4×4)
Rated Power	kW	117.7
Length × Width × Height (Cabin)	mm	4880 × 2100 × 3050
Length × Width × Height (ROPS)	mm	4880 × 2100 × 2930
Wheel Base	mm	2510
Minimum Ground Clearance (Front Axle Drain Bolt)	mm	410
Minimum Operating Mass (Cabin)	kg	4600
Minimum Operating Mass (ROPS)	kg	4350
Front Tread	mm	1620 (1620–1820), Adjustable
Rear Tread	mm	1620 (1620–1820), Adjustable
Clutch Type	/	Dry-Type, Double-Acting
Engine Model	/	YTO 6-Cylinder Diesel Engine (National II Emission Standard)
Rated Speed	r/min	2200
Gear Range	/	24 Forward + 8 Reverse
PTO Type	/	8 Spline, Φ38, Type I (Optional: 6 Spline)
PTO Rated Power	kW	≥100.3
PTO Speed	r/min	760/1000 or 760/850 or 540/1000

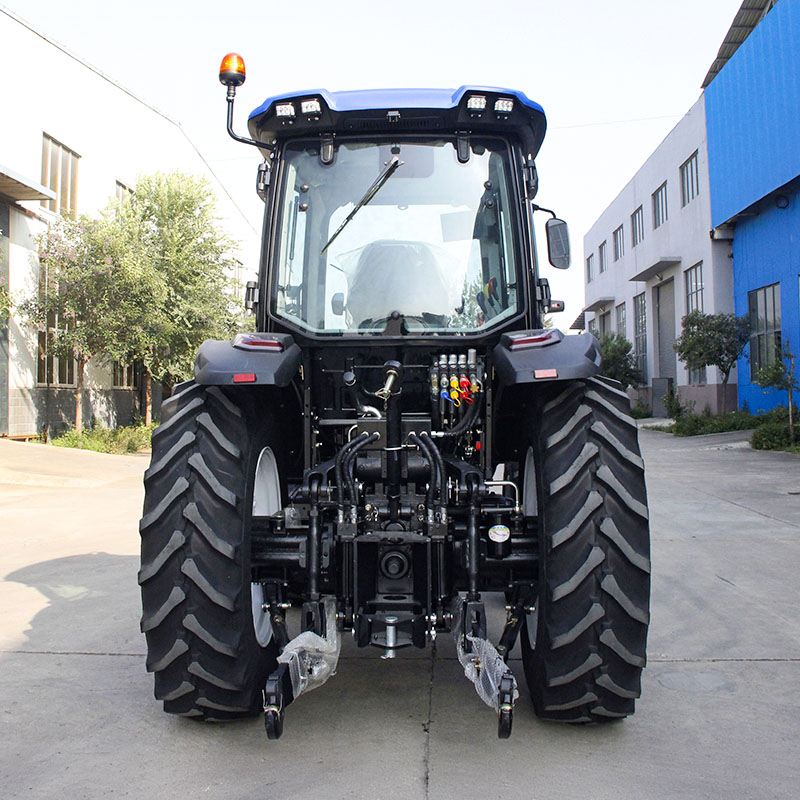

Three-Point Linkage	/	Rear Mounted, Three-Point Suspension, Category II
Hydraulic Output	/	3-Group Hydraulic Valve
Hydraulic Adjustment Mode	/	Forced Hydraulic System, Position Control and Floating Control
Maximum Lifting Force at 610mm Frame Center	kN	≥28.3
Front / Rear Balance Weight	kg	440 / 90
Standard Tire Size (Front / Rear)	/	12.4-24 / 16.9-34
Optional Tire Size (Type I)	/	13.6-24 / 16.9-38
Available Options	/	Cabin, Air Brake, ROPS Safety Frame, Sunroof

عرض المنتجات

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

الأسئلة الشائعة

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
