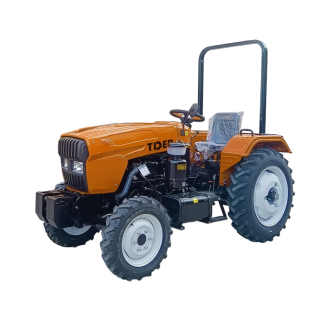

50HP Tractor
TM504

50HP Tractor
TM504
50 hp
1480 kg
4WD

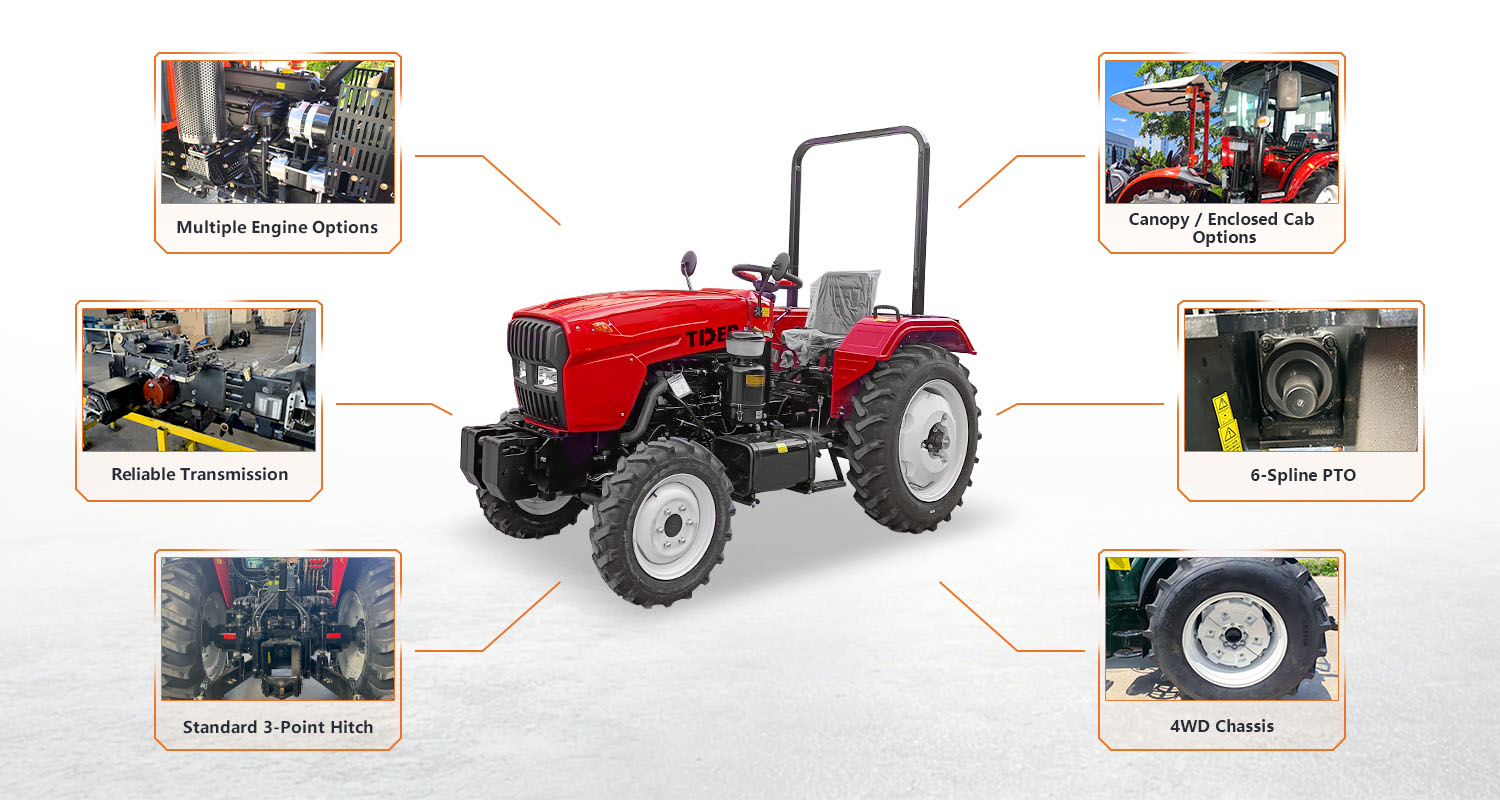

The 50HP engine combined with a reliable transmission delivers stable power output and smooth shifting performance, ensuring efficient operation for orchard work, small farm tasks, and light agricultural applications.
The four-wheel drive system with optimized tire options provides strong grip and stability across muddy fields, uneven farmland, and orchard environments, improving overall field performance.
The dual PTO speeds support a variety of agricultural implements, making the tractor suitable for plowing, mowing, and general farm mechanization tasks.
A 1-meter wheel track combined with front and rear counterweights improves stability and maneuverability, while the protective safety frame ensures safer operation in orchard and low-clearance environments.
| Drive Type | — | 4×4 four-wheel drive |
| Engine Power | kW | 36.8 |
| Rated Speed | rpm | 2400 |
| Overall Dimension (L×W×H) | mm | 3420×1250×2280 |
| Wheelbase | mm | 1770 |
| Minimum Ground Clearance | mm | 300 |
| Operating Mass | kg | 1480 |
| Front Track | mm | 1000 mm (adjustable range: 1000–1300 mm) |
| Rear Track | mm | 1000 mm (adjustable range: 1000–1300 mm) |
| Clutch Type | — | Dry-type single-acting clutch |
| Gear System | — | 8 forward + 2 reverse gears (optional 8F + 8R configuration) |
| PTO Type | — | 6-spline Ø35 mm shaft (optional 8-spline shaft) |
| PTO Power | kW | ≥18.8 |
| PTO Speed | rpm | 540 / 720 rpm |
| Three-point Suspension | — | Rear-mounted CAT I three-point linkage system |
| Hydraulic Output | — | Optional 1-group or 2-group hydraulic valve system |
| Hydraulic System | — | Built-in hydraulic lifting system (optional forced lift & drop system) |
| Max Lifting Force | kN | ≥4.2 |
| Standard Tyres (Front/Rear) | — | 6.00-16 / 9.50-24 agricultural tyres |
| Optional Tyres | — | 6.50-16 / 11.2-24 heavy-duty tyres |
| Air Brake | — | Optional air brake system |
