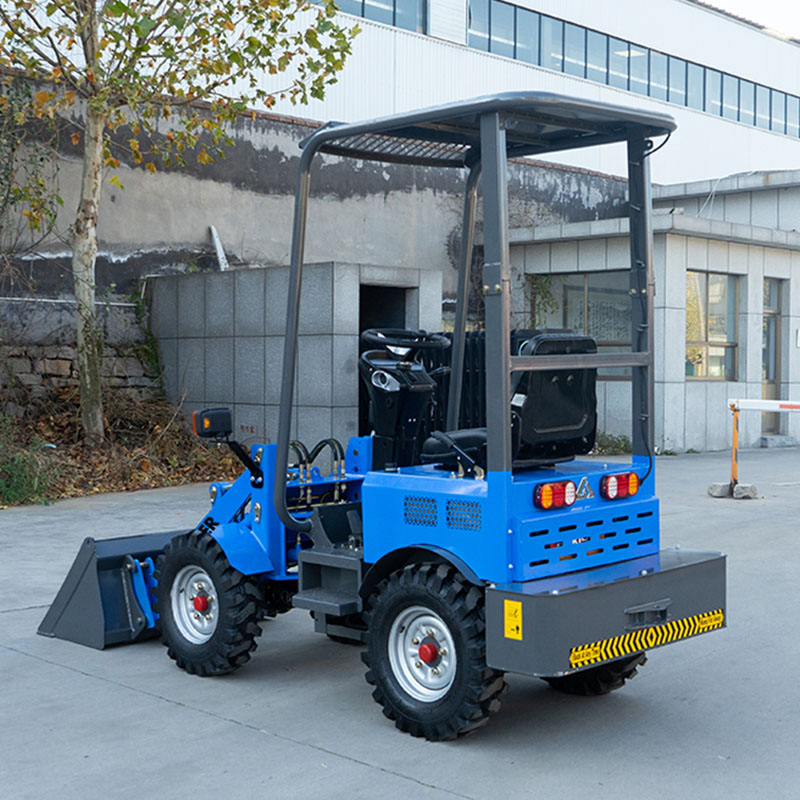

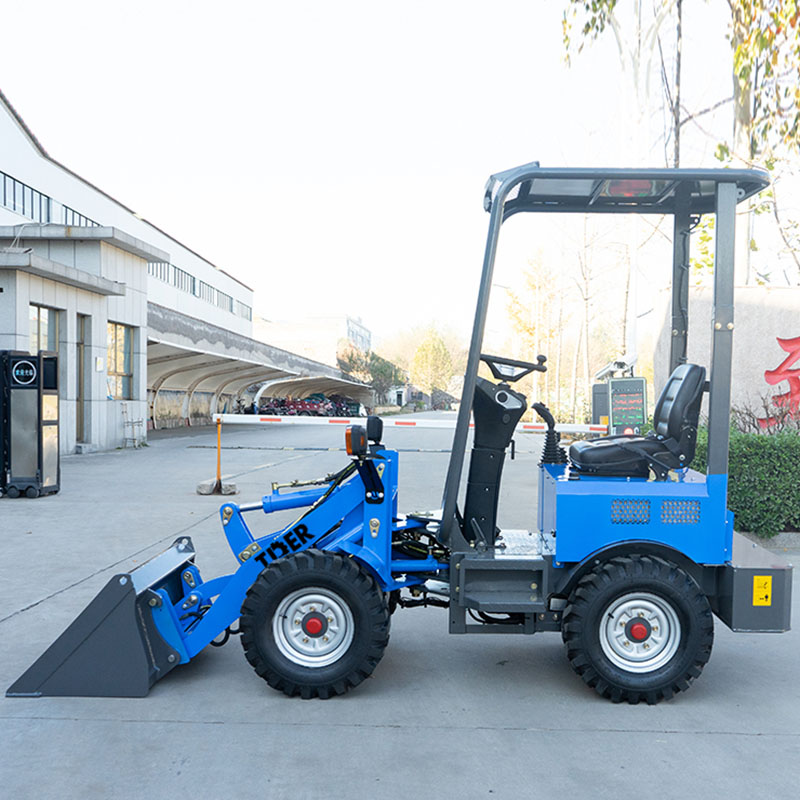

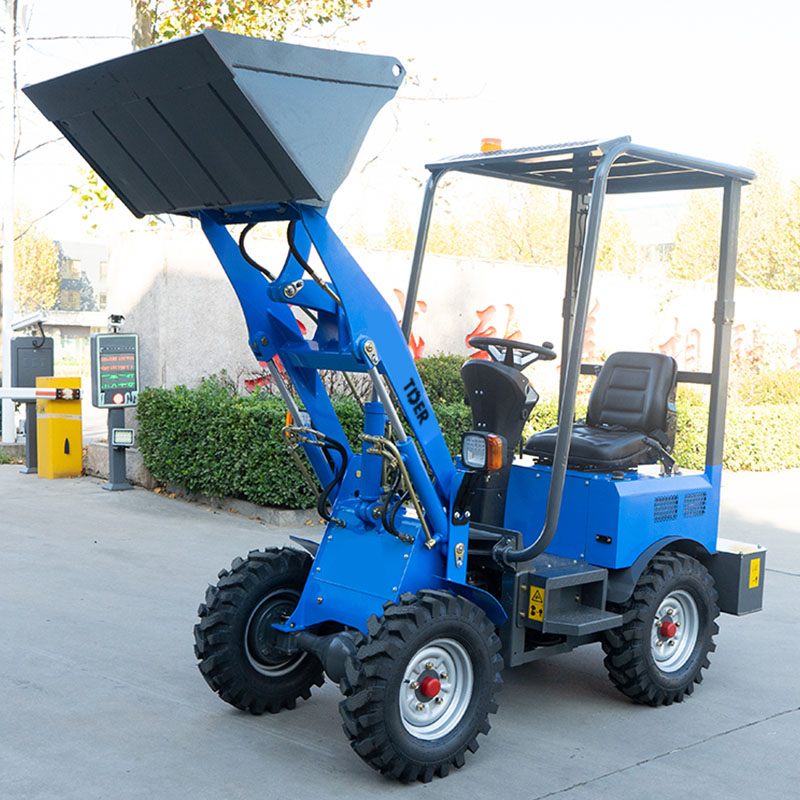

0.4 Ton Electric Loader
ZT904EV
Features
Zero Emission Electric System with Maintenance-Free Battery
The 60V 150Ah maintenance-free lead-acid battery system combined with dual 2.5kW travel motors delivers stable electric drive performance with low operating cost, reduced maintenance requirements, and zero fuel consumption, making it ideal for indoor, urban, and environmentally sensitive working conditions.
Dual Motor 4WD System for Stable All-Terrain Mobility
Independent dual travel motors paired with full-time four-wheel drive ensure balanced traction and smooth power distribution, improving stability and maneuverability on uneven ground and light construction sites.
Compact Electric Frame Design for Narrow Space Operation
A lightweight 0.4-ton structure with compact wheelbase and 1400mm unloading height allows flexible operation in confined spaces such as farms, warehouses, and small material yards.
Operator Safety Structure with Hydraulic Control System
Standard protective canopy, hydraulic steering system, and drum brake configuration enhance operational safety and control precision, ensuring reliable performance during daily material handling work.
Specifications
| IDENTIFICATION | TOTAL WEIGHT | KG | 1060 |
| RATED LOAD | KG | 400 | |
| BUCKET CAPACITY | m³ | 0.2 | |
| FUEL TYPE | BATTERY | ||
| MAX SPEED ON LOW STATION | Km/h | 10 | |
| Km/h | 18 | ||
| WHEEL QUANTITY | F/R | 2/2 | |
| BATTERY | BATTERY MODEL | 6-QW- 150 ALPINE | |
| BATTERY TYPE | MAINTENANCE- FREE LEAD- ACID BATTERY |
||
| BATTERY QUANTITY | 5 | ||
| BATTERY CAPACITY | KW | 9 | |
| RAETD VOLTAGE | V | 60 | |
| WORKING TIME | 8h | ||
| CHARGE TIME | 8h | ||
| ELECTRICAL SYSTEM | V | 12 | |
| HYDRAULIC SYSTEM |
Motor | YF100B30-60A | |
| Power | W | 3000 | |
| DISPLACEMENT | ml/r | 16 | |
| ROTATING SPEED | Low 800 r/min High2000 r/min | ||
| PRESSURE | mpa | 16 | |
| STEERING SYSTEM |
STEERING SYSTEM | HYDRAULIC | |
| PRESSURE | mpa | 14 | |
| WALKING SYSTEM |
WALKING MOTOR | Y140B18-60A | |
| POWER FORM | ALTERNATING CURRENT | ||
| VOLTAGE | V | 60 | |
| MOTOR QUANTITY | 2 | ||
| POWER | W | 1800*2 | |
| TYRE | 6.00- 12 MOUNTAIN TIRE | ||
| BRAKE SYSTEM |
WORKING BRAKE | DRUM OIL BRAKE | |
| PARKING BRAKE | DRUM HANDBRAKE | ||
| PACKAGE | 3 UNITS IN 20GP 10UNITS IN 40HC | ||
| Standard Equipments： quick change 、electrical display 、electrical joystick |
|||
