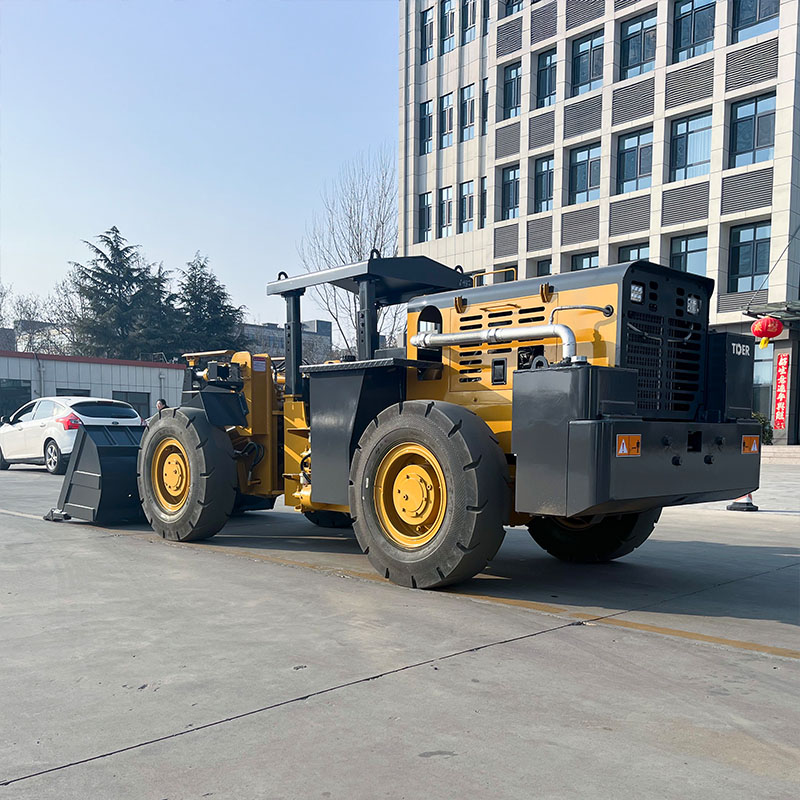

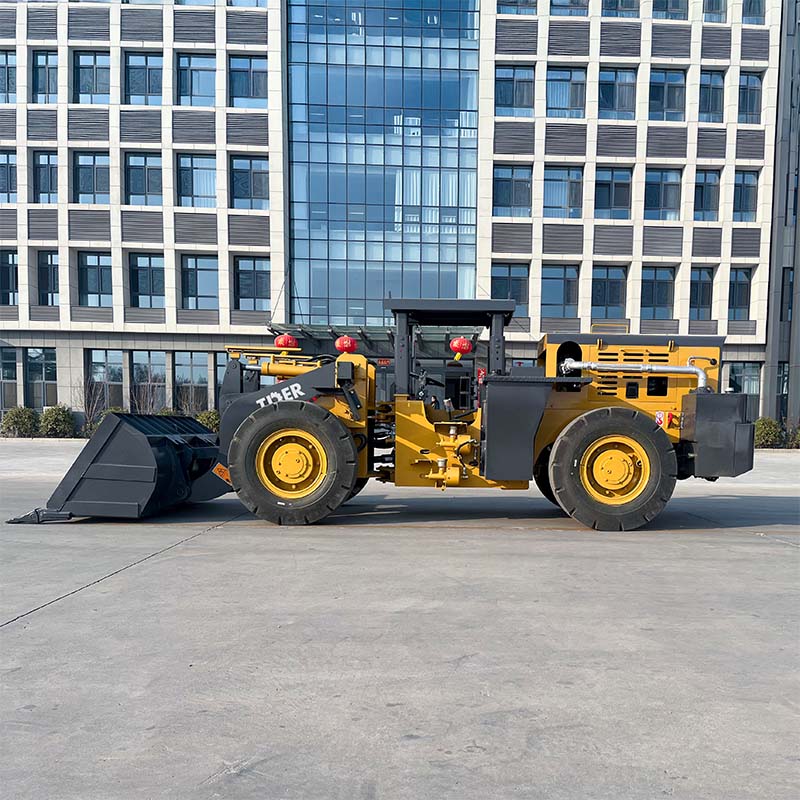

2 Ton Underground Loader
ZT920U
Features

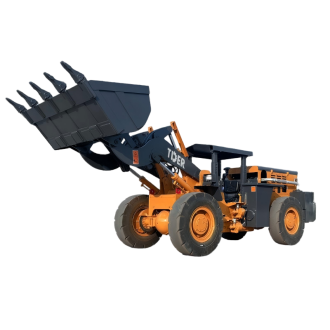

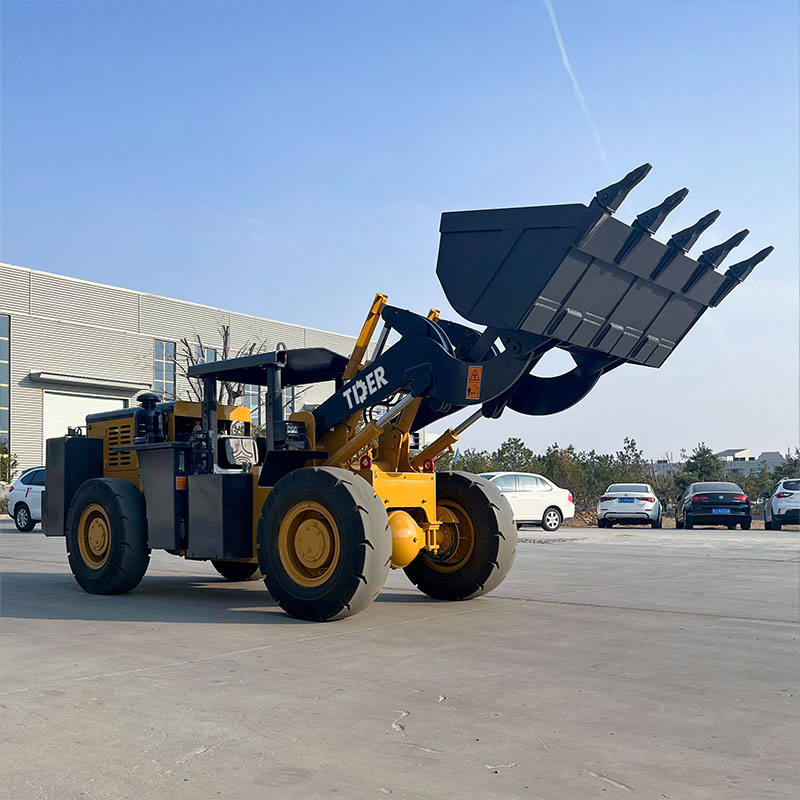

Dual Boom Stability for Heavy Loading
The dual boom linkage design provides stronger lifting balance and improved load distribution during bucket operations. Compared with conventional single-arm layouts, it reduces forward tilt during heavy digging and enhances stability when loading uneven rock materials in confined tunnels.
High Torque Engine for Continuous Underground Hauling
The Dongfanghong 4105 turbocharged engine is tuned for high torque at low engine speed, making it suitable for continuous underground hauling where instant pulling force matters more than high speed. It maintains stable output even under prolonged load cycles in mining environments.
Enhanced Climbing and Load Capacit
The reinforced axle structure concentrates torque directly at the wheels, improving climbing ability and load-bearing performance. This design is especially effective in underground mines where resistance and gradient changes are frequent.
Instant Brake Response for Underground Safety
The pneumatic-assisted hydraulic braking system provides faster response and stronger braking force compared to standard hydraulic setups. It improves operator control during downhill transport and heavy load stopping in narrow tunnel conditions.
Specifications
| Bucket Capacity | m³ | 1 |
| Rated Load | t | 2 |
| Operating Weight | t | 5.5 |
| Speed | km/h | 0-16 |
| Forward Gear | km/h | I0-7Ⅱ0-16 |
| Reverse Gear | km/h | I0-7Ⅱ0-16 |
| Grade Ability | ° | 15° |
| Overall Dimension (L×W×H) | mm | 5370×1800×1850 |
| Turning Radius (Inner side) | mm | 3500(Inner side) |
| Turning Radius (Outside) | mm | 5400(Outside) |
| Min. Ground Clearance | mm | 290 |
| Wheel Base | mm | 2470 |
| Wheel Tread | mm | 1400 |
| Max. Dumping Height | mm | 1870 |
| Dumping Reach | mm | 880 |
| Engine Model | - | Dongfanghong (YTO) LR4A3Z-22 |
| Rated Power | kW | 70 |
| Tire Model | - | 15/70-18 or 9.75-18 |
