0.5 Ton Electric Loader
ZT905EV
Features
Zero-Emission Electric Platform for Low Operating Cost
The 80V lithium battery system combined with integrated electric drive architecture eliminates fuel consumption and reduces mechanical complexity, significantly lowering long-term operating cost while improving environmental adaptability for indoor and urban use.
Unified Electric Power System for Reduced Maintenance Downtime
Matched electric components including controller, motors, pumps, valves, and drive axles ensure system consistency and reliability. This integrated design reduces failure points, shortens maintenance time, and minimizes equipment downtime in daily operations.
Solar-Assisted Charging System for Extended Availability
Integrated solar charging support combined with a built-in 220V onboard charger improves energy flexibility and reduces charging dependency, supporting longer working availability in off-grid or field conditions.
Wear-Resistant Tire System for Multi-Surface Operation
23×8.5-12 pneumatic tires provide reliable grip and shock absorption, ensuring stable performance across concrete, gravel, and uneven working surfaces.
Specifications
| Voltage | V | 80 |
| Capacity | Ah | 105 |
| Electricity Quantity | kWh | 8.4 |
| Rated Load Capacity | kg | 500 |
| Rated Bucket Capacity | m³ | 0.16 |
| Bucket Width | m | 1 |
| Unladen Weight | kg | 1030 |
| Min. Turning Radius | mm | 1780 |
| Wheel Base | mm | 1410 |
| Wheel Track | mm | 880 |
| Dumping Height | mm | 1400 |
| Dumping Distance | mm | 460 |
| Dimension (L×W×H) | mm | 3010 × 1080 × 2070 |
| Tyre Model | - | 23 × 8.5 - 12 |

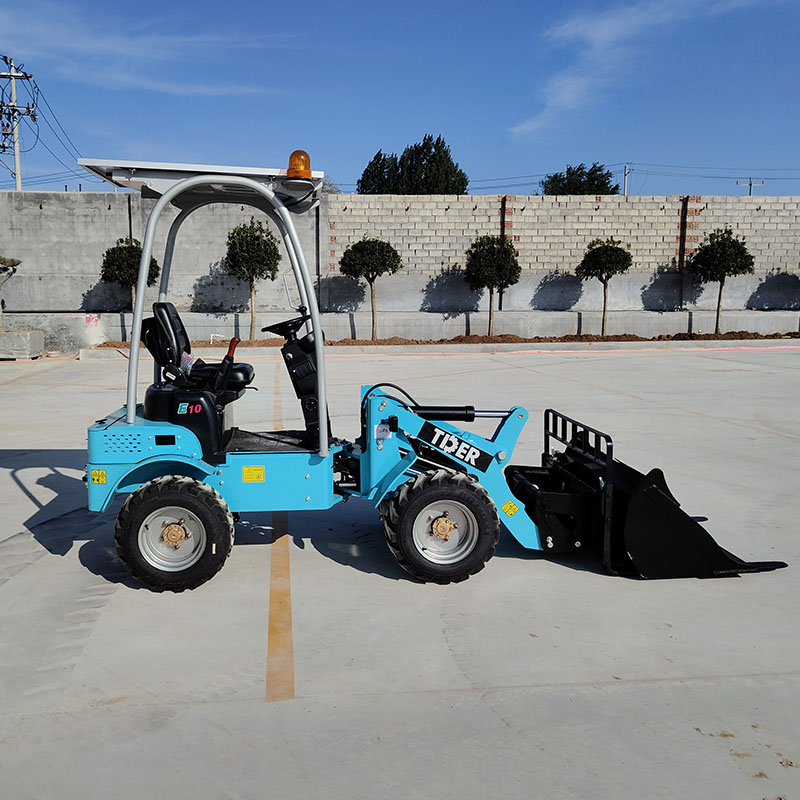

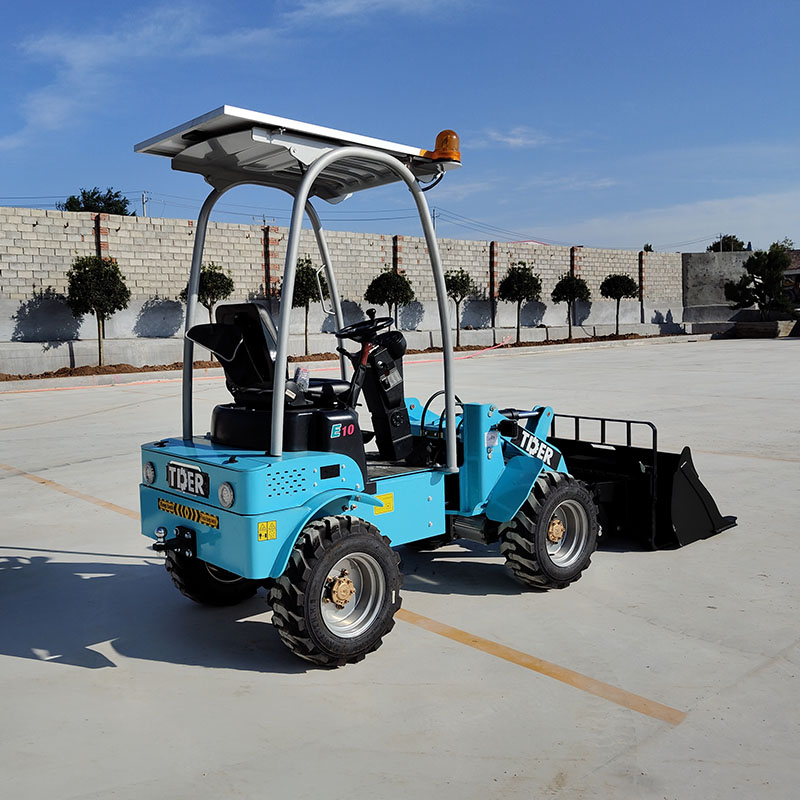

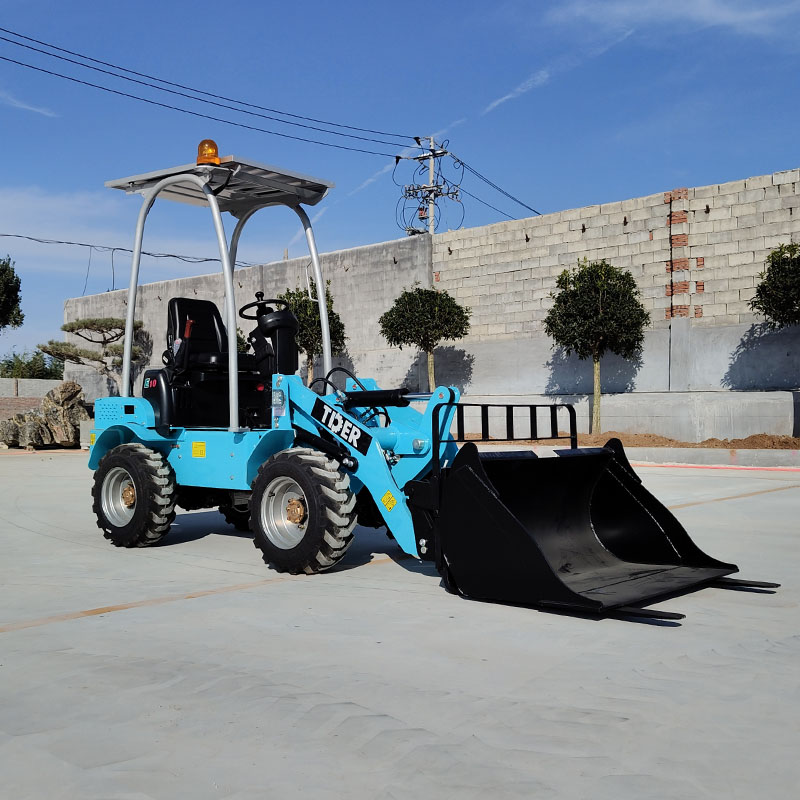

Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
