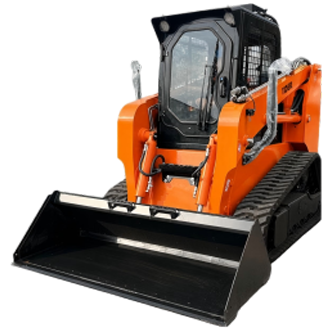

Cost-Effective 1200kg Track Skid Stee
DS100
Features
Premium Performance Without the Premium Price
DS100 combines robust, proven engine options — Xinchai, Cummins, Yanmar, Kubota, and Korea LS — with high-quality Rexroth travel motors and Italian HB valves to deliver consistent power and hydraulic response even under continuous heavy-duty cycles. Operators can confidently run demanding attachments like augers, breakers, and trenchers, achieving high-intensity work with lower operating costs.
Track Design for Enhanced Ground Adaptability
The 320×86 reinforced track system provides superior traction, flotation, and stability on soft or uneven terrain. Unlike wheeled machines, the track platform reduces soil compaction, maintains machine balance on slopes, and ensures consistent performance in muddy, sandy, or gravel surfaces, expanding operability in challenging environments.
Integrated Cooling for Engine and Hydraulics
A large stacked-core radiator manages heat for both the engine and hydraulic system, preventing performance loss in extended high-intensity cycles. This ensures that operators experience consistent power output and reliability, even during long shifts under extreme working conditions.
Quick-Attach System for Multi-Purpose Applications
Standard quick-coupler interface allows rapid switching between attachments such as buckets, pallet forks, hydraulic breakers, trenchers, and augers, turning the DS100 into a versatile jobsite platform for construction, landscaping, and industrial operations.
Specifications
| Operating Load | Kg | 1200 |
| Max Speed | Km/H | 12\18 |
| Rated Flux | L/Min | 80 |
| High Flow Flux | L/Min | / |
| Tire Model | 320X86 | |
| Self Weight Bucket | Kg | 4350 |
| Bucket Capacity | M³ | 0.5 |
| Overall Operating Height | mm | 3480 |
| Hheight To Top Of Cab | mm | 2150 |
| Without Bucket Length | mm | 2750 |
| Overall Length With Bucket | mm | 3500 |
| Dumping Height | mm | 2230 |
| Width | mm | 1782 |
| Bucket Width | mm | 1830 |
| Height To Bottom Of Level Bucket | mm | 2730 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 2900 |
| Dumping Reach | mm | 715 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1500 |
| Ground Clearance | mm | 200 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1298 |
| Front Tuning Radius | mm | 2010 |
| Rear Tuning Radius | mm | 1714 |
| Rear Axle To Bumper | mm | 890 |
| Tread Width | mm | 1462 |
| Engine | Xinchai A498BGZ/T | |
| Rated Power | Kw | 55 |
| Fuel Tank Capacity | L | 90 |

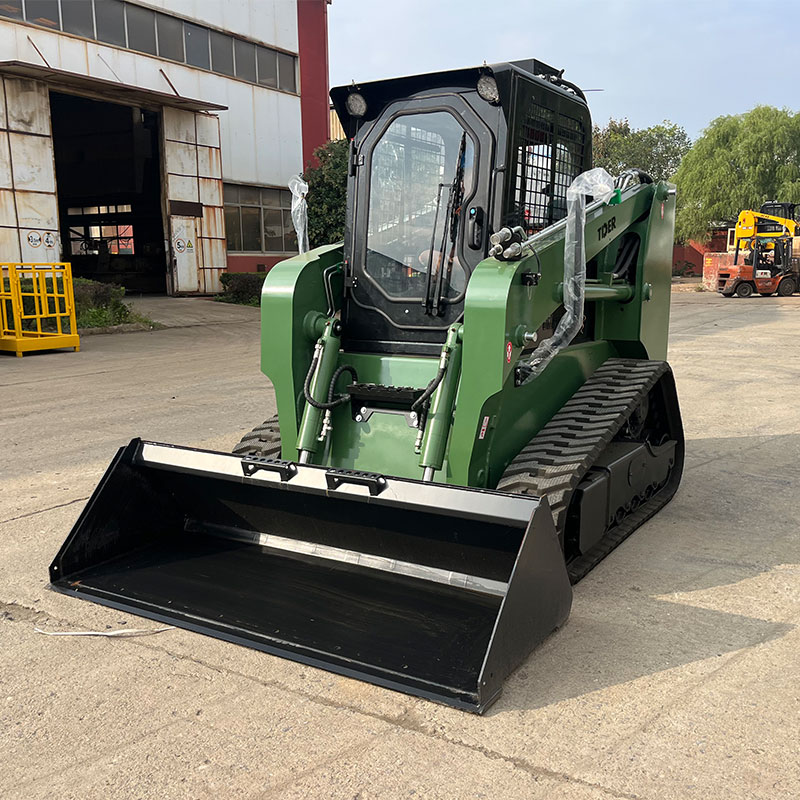

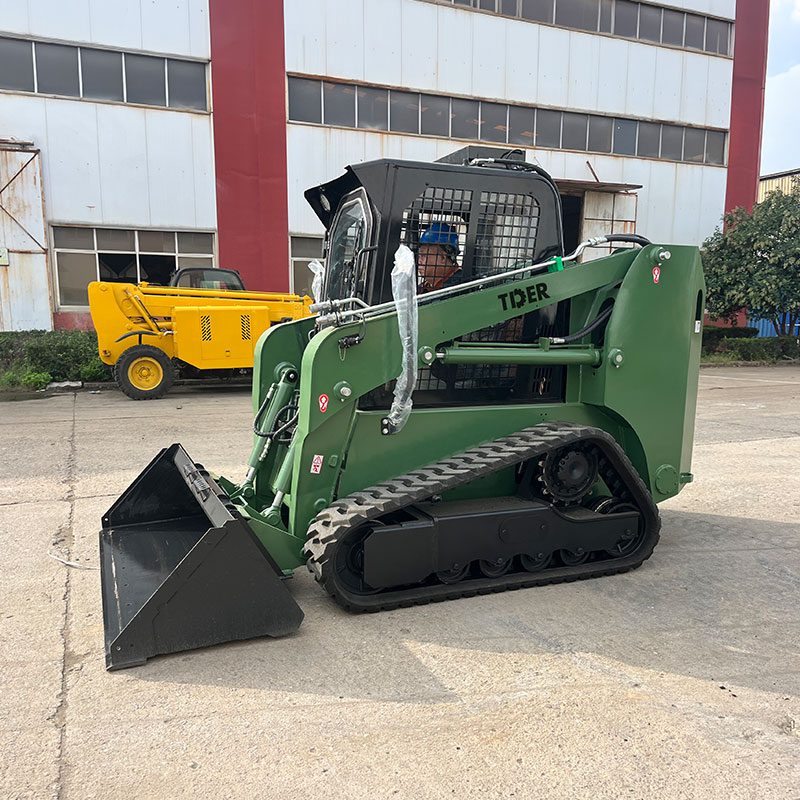

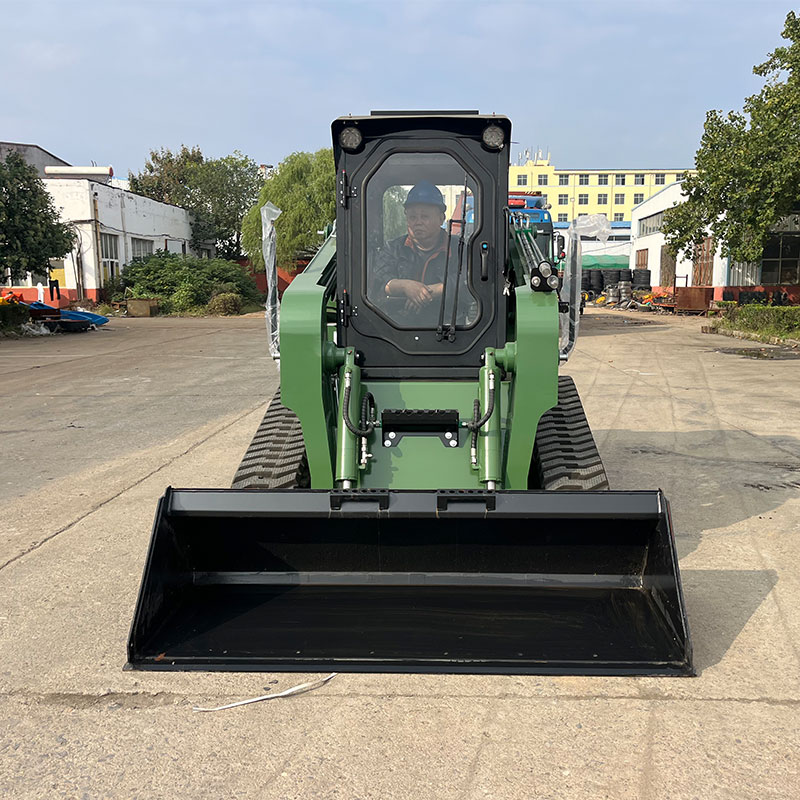

Product Showcase
