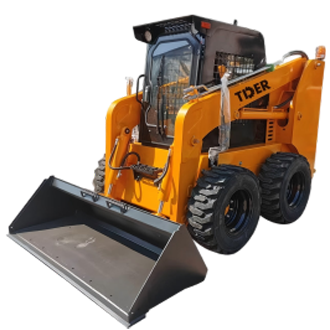

1500kg Skid Steer Loader
TDS120
Features
Weichai High-Torque Power & Dual-Speed Efficiency
Powered by a 103 kW Weichai engine, this machine offers massive breakout force. The standard Dual-Speed Motor (12/18 km/h) allows operators to switch between high-torque work mode and fast job-site travel, significantly cutting down non-productive transit time.
World-Class Rexroth & Italian Hydraulic Core
TDS120 is built with a premium hydraulic heart, featuring Rexroth pumps and motors combined with Italian HB valves. This high-end configuration ensures razor-sharp control, extreme durability, and maximum power transfer to the wheels and attachments.
Abrasion-Resistant Bucket for Faster Loading Cycles
The 0.55m³ heavy-duty steel bucket uses a streamlined structure with abrasion-resistant materials, enabling faster filling and smoother material roll-out during loading operations. This helps improve cycle efficiency in large-scale earthmoving and material handling projects.
Heavy-Duty Linkage Structure for Higher Breakout Force
TDS120 features a forged heavy-duty linkage structure engineered with optimized geometry to maximize breakout force and lifting performance during demanding material handling operations. Its reinforced design delivers strong structural strength and stable working performance when handling dense materials, heavy loads, and high-intensity attachment applications.
Maximum High-Flow Capability
With a massive 140 L/min high-flow output, TDS120 can drive the most demanding industrial attachments, such as heavy cold planers and high-capacity snow blowers, with effortless ease.
Specifications
| Operating Load | Kg | 1500 |
| Max Speed | Km/H | 12\18 |
| Rated Flux | L/Min | 75 |
| High Flow Flux | L/Min | 140 |
| Tire Model | 12-16.5 | |
| Self Weight Bucket | Kg | 4000 |
| Bucket Capacity | M³ | 0.55 |
| Overall Operating Height | mm | 4070 |
| Hheight To Top Of Cab | mm | 2160 |
| Without Bucket Length | mm | 2880 |
| Overall Length With Bucket | mm | 3580 |
| Dumping Height | mm | 2450 |
| Width | mm | 1880 |
| Bucket Width | mm | 1880 |
| Height To Bottom Of Level Bucket | mm | 2983 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3150 |
| Dumping Reach | mm | 700 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1185 |
| Ground Clearance | mm | 205 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1278 |
| Front Tuning Radius | mm | 2144 |
| Rear Tuning Radius | mm | 1857 |
| Rear Axle To Bumper | mm | 1082 |
| Tread Width | mm | 1500 |
| Engine | Weichai WP4.1G140E301 | |
| Rated Power | Kw | 103 |
| Fuel Tank Capacity | L | 90 |

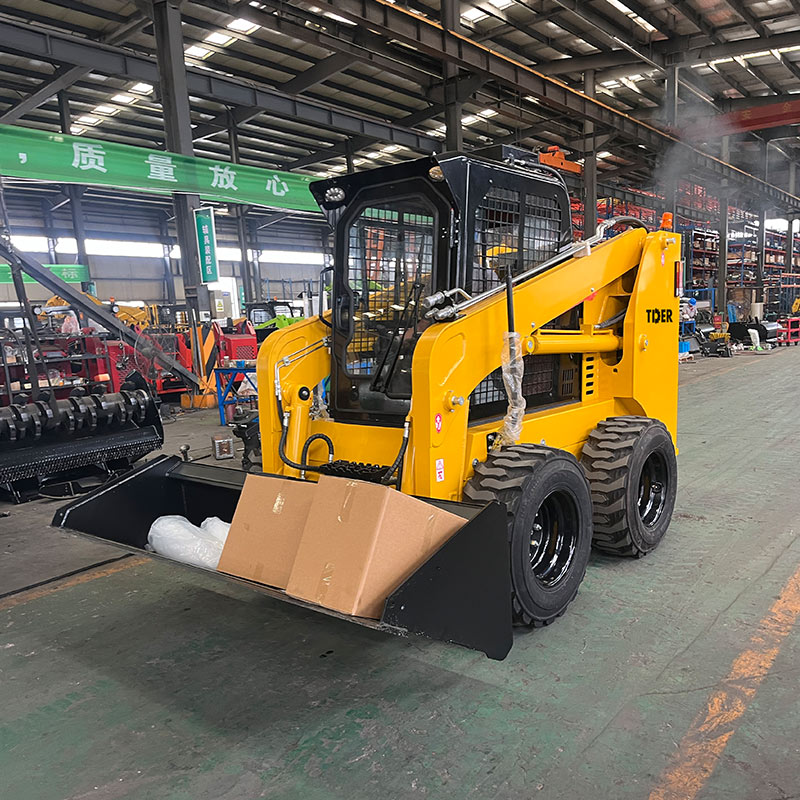

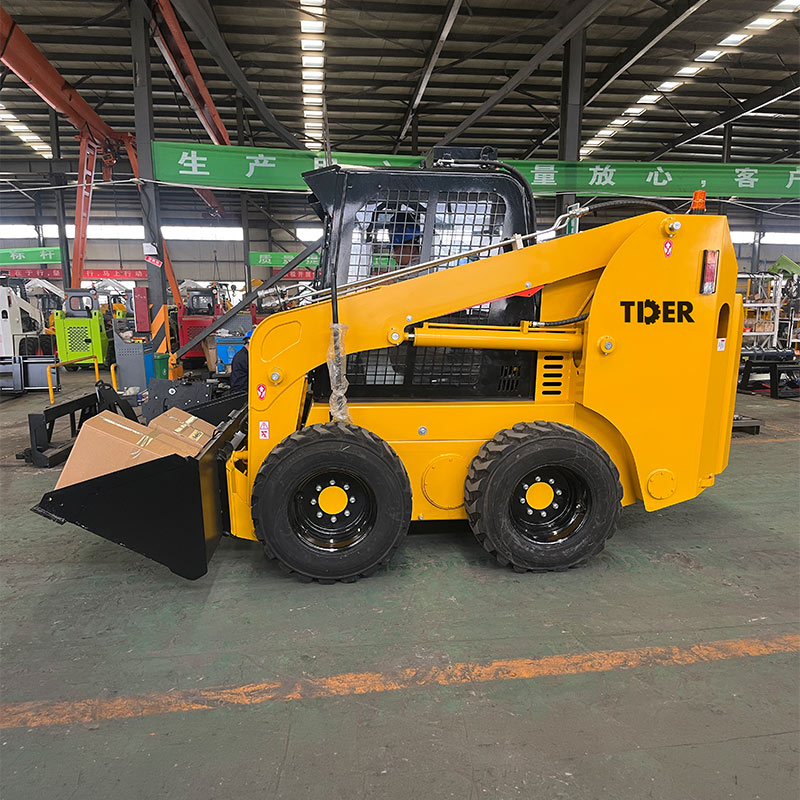

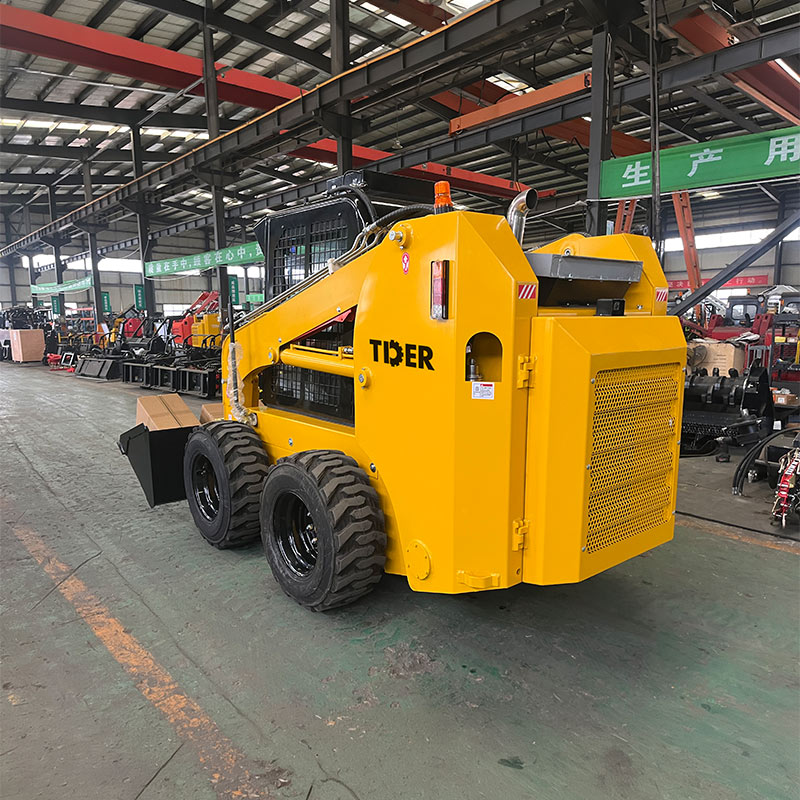

Product Showcase
