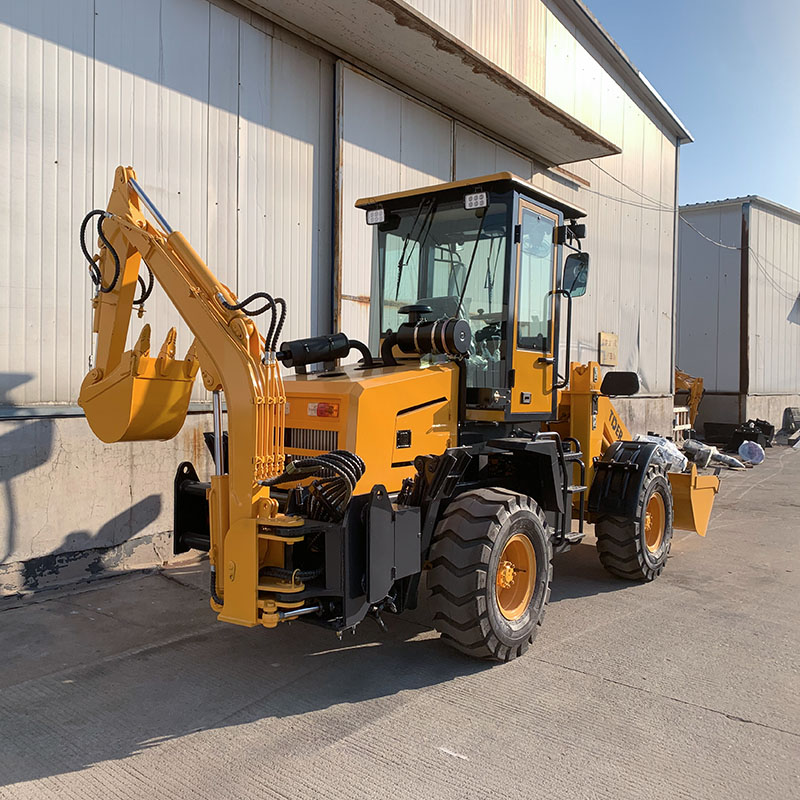

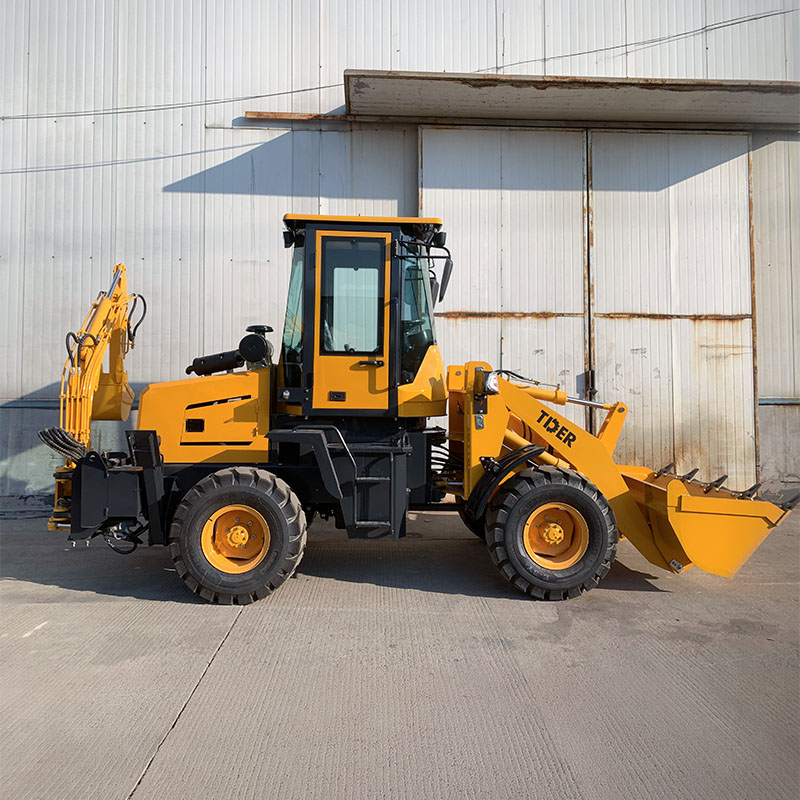

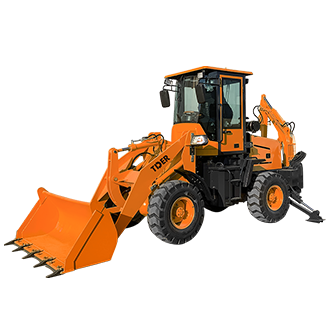

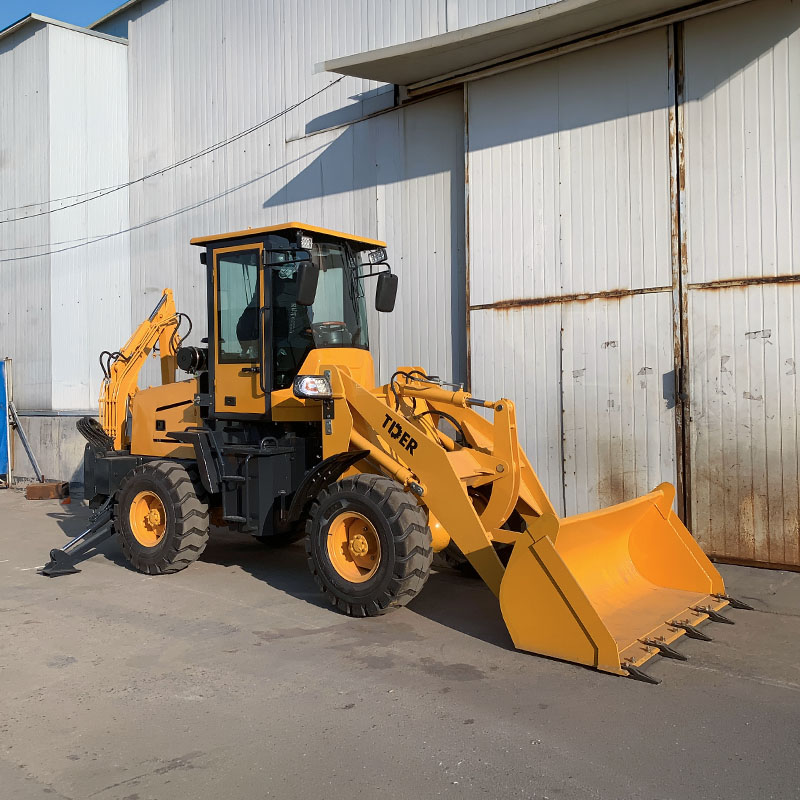

Name: 1.8 Ton Small Backhoe Loader with H-Type Outriggers
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Turbocharged Engine for Strong and Efficient Performance

ZT15-26 is powered by a 58kW turbocharged four-stroke diesel engine, delivering stronger torque output, improved fuel efficiency, and reliable performance under heavy-duty working conditions. The turbocharging system enhances power response, especially during loading and deep digging operations.

Global Engine Options with Cummins

For global markets, the machine supports engine options from internationally recognized brands such as Cummins, including configurations that meet EPA emission standards. This improves reliability, expands market compatibility, and ensures compliance with stricter environmental regulations.

H-Type Outrigger System for Superior Stability

The H-type outrigger system provides a wider support base and stronger ground anchoring compared to conventional designs, ensuring higher stability and safer operation during excavation, especially under heavy loads or uneven ground conditions.

Optional Engine Preheating System for Cold Start Reliability

The optional 220V external engine preheating system helps warm up the engine and coolant before startup, ensuring reliable ignition and reducing engine wear in cold environments.

High Dumping Height for Efficient Loading

The 0.7m³ bucket combined with a 3300mm dumping height enables efficient loading into medium and large trucks, reducing cycle time and improving material handling efficiency on site.

Deep Digging Performance for Extended Job Coverage

With up to 2700mm digging depth and extended working radius, the machine is capable of handling foundation work, trenching, and utility installation more efficiently, reducing repositioning and improving productivity.

Specifications

Overall Dimension（L×W×H）	mm	580018502750
Wheel Base	mm	2315
Wheel Tread	mm	1500
Min. Ground Clearance	mm	220
System Pressure	MPa	16
Operating Weight	Kg	4800
Max. Speed	Km/h	26
Max. Climbing Gradient	°	25
Digging Parameters
Turning Radius	mm	4000
Max. Digging Depth	mm	2700
Max. Digging Dumping Height	mm	2200
Max. Digging Radius	mm	4600
Bucket Width	mm	500
Backhoe Capacity	m³	0.2
Max. Digging Height	mm	4200
Max. Digging Force	kN	28
Rotary Angle Of Excavator	°	180
Loading Parameters
Max. Dumping Height	mm	3300
Max. Dumping Distance	mm	850
Bucket Width	mm	1900
Bucket Capacity	m³	0.7
Max. Loading Lifting Height	mm	4200
Max. Breakout Force	kN	36
Forward Shovel Action Time	S	12
Engnie		Yunnei YN27GBZ
Rated Power	KW	58
Rated Speed	r/min	2400
Cylinders-Inside Diameter		4-90
Gear Shift		F2/ R2
Steering Angle	°	33
Tire Size		23.5-16
Front Wheel Pressure	kPa	250
Rear Wheel Pressure	kPa	250
Fuel Tank	L	40
Hydraulic Tank	L	40
Drive Type		Four-wheel drive
Variable Speed Type		Hydraulic variable speed
Variable Speed Type	mm	450

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
