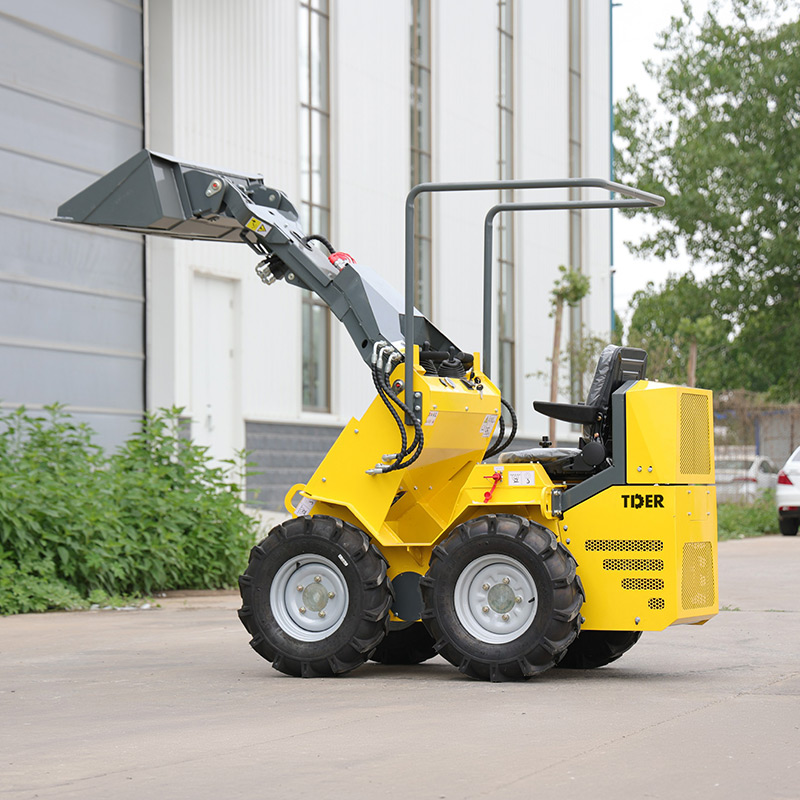

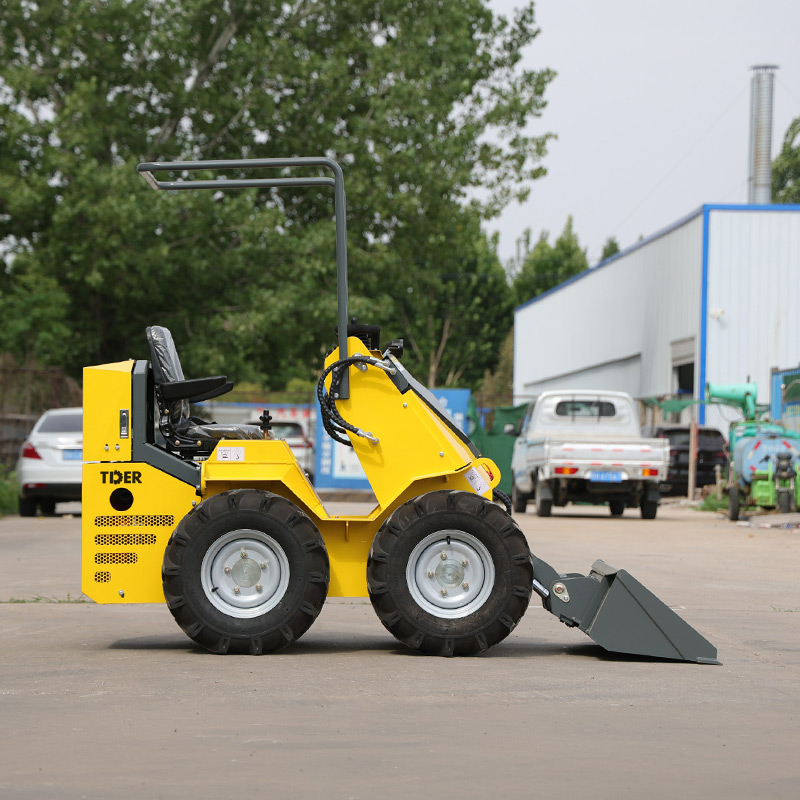

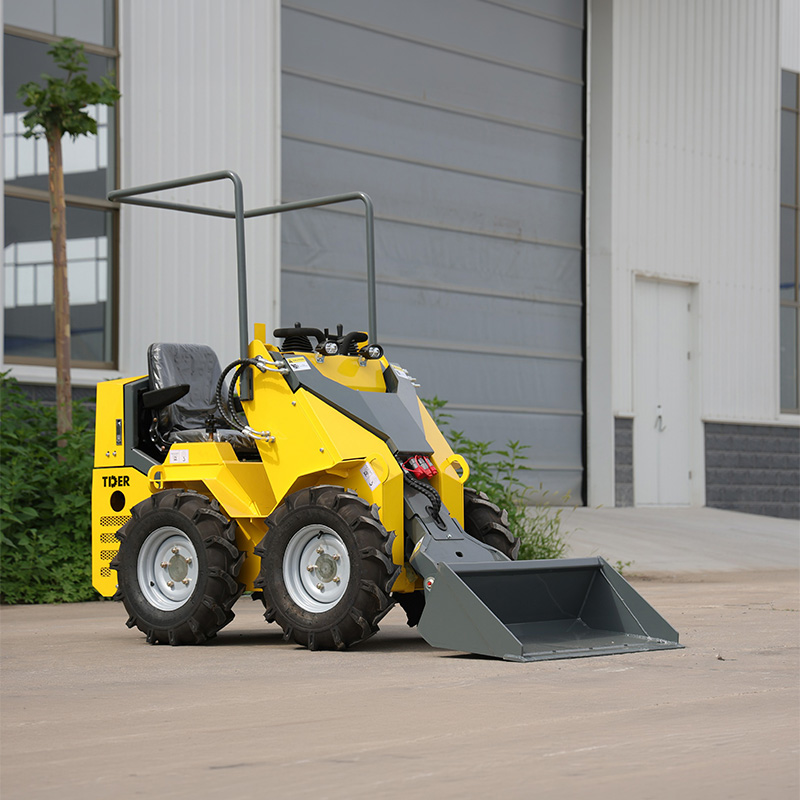

Name: 240kg Ride On Skid Steer Loader with Multiple Engine Options
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Ride-On Design for Higher Productivity and Operator Comfort

TDER TDS13S ride-on skid steer loader is designed for continuous and efficient operation in demanding jobsite environments, where operator comfort and productivity are equally important. The ride-on platform provides improved stability, better machine control, and a more comfortable working experience during long hours of repetitive loading and material handling tasks, making it highly suitable for construction contractors, rental fleets, and professional site operations.

High-Efficiency Performance

TDS13S delivers a rated load capacity of 240kg and is equipped with a high-efficiency hydraulic system operating at 18.5 MPa, ensuring strong and stable working performance. Its optimized working cycle, including a 4.7-second lifting time, 2.9-second lowering time, and 2.1-second dumping time, significantly improves operational efficiency and reduces overall job completion time in daily construction and material handling tasks.

Operator-Centric Design

Standard features include bright LED work lights for night operations, ergonomic armrests, and a sturdy safety frame to keep the operator secure and comfortable.

Specifications

Performance	Rated Load	kg	240
	Bucket Capacity	m³	0.13
	Overall Dimensions	mm	243010501285
	Working Speed	km/h	0-4.2
	Rated Pressure	Mpa	18.5
	Lifting Time	S	4.7
	Descent Time	S	2.9
	Dumping Time	S	2.1
	Climbing Ability	%	30
	Working Weight	kg	827	828	852
Engine	Brand		Rato R420	Briggs&Stratton XR2100	KOOP 192
	Type		Single-cylinder air-cooled petrol engine		Single-cylinder air-cooled diesel engine
	Output Power		15HP/3600rpm	13.5HP/3600rpm	11.7HP/3600rpm
	Fuel Consumption	L/h	≤4.2	≤3.8	≤2.3
	Starting Method		Electric start	Electric start	Electric start
Capacity	Fuel Tank	L	6.7	6.6	5.5
	Engine Oil	L	1.1	1.1	1.65
	Hydraulic Tank	L	23	23	23

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
