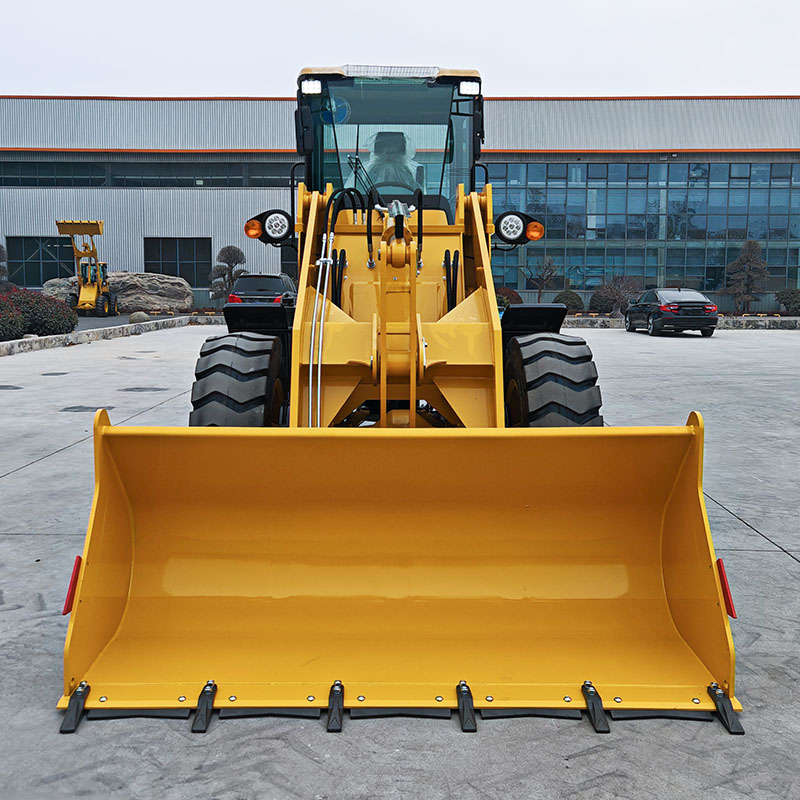

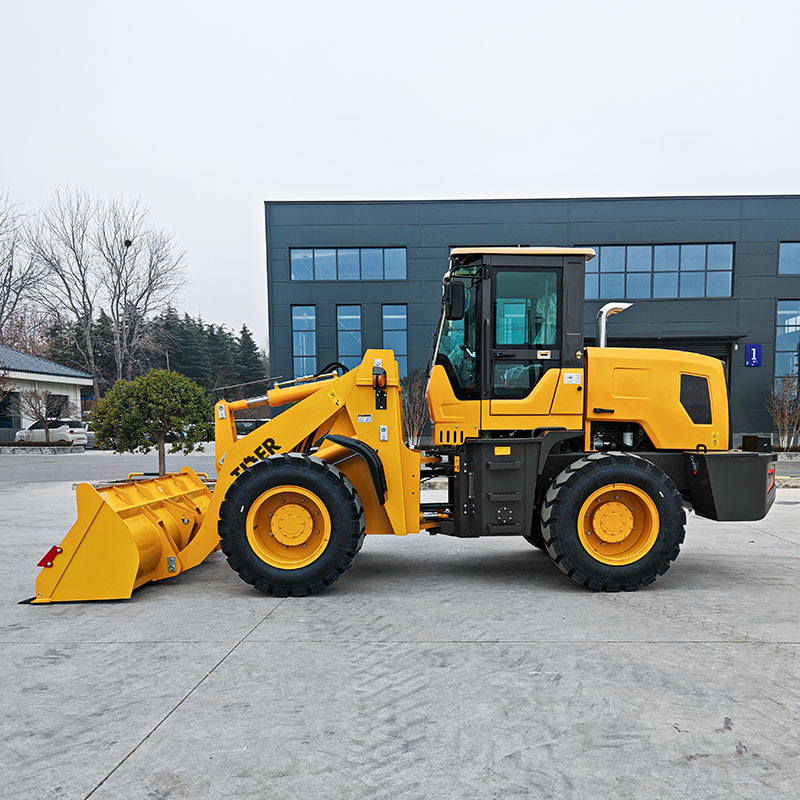

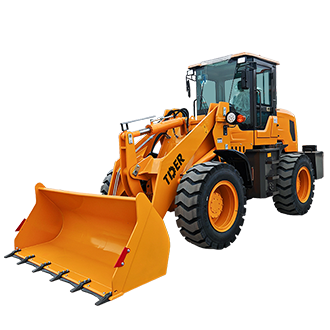

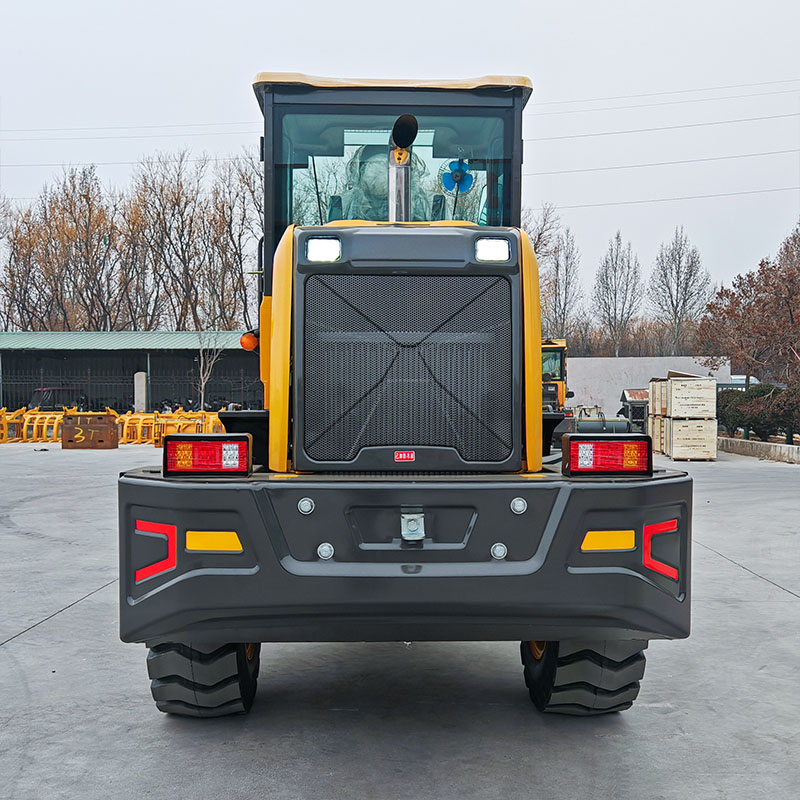

2.5 Ton Wheel Loader
ZT925
Features
Engine Options with Flexible Power Range
ZT925 offers optional internationally recognized engine configurations including Cummins and other premium brands, with power output ranging from 42KW to 99KW, available in EPA and Euro V compliant versions, providing flexible power solutions for different working conditions, emission requirements, and global market applications.
Large Bucket Efficiency System
With a 1.3m³ bucket expandable to 1.5m³, the machine significantly reduces loading cycles and improves material handling efficiency for bulk materials such as sand, gravel, and soil.
High Reach Loading Capability
A 3.6-meter dumping height allows direct loading into trucks and containers, reducing secondary handling and improving logistics efficiency on job sites.
Heavy Duty Terrain Adaptability
Reinforced wheel-side axle combined with 16/70-24 heavy-duty tires provides improved traction, stability, and load resistance in rough and uneven working environments.
Structural Durability for Continuous Work
35mm reinforced boom and heavy-duty chassis design ensure long-term resistance to bending and fatigue under high-load working conditions.
Specifications
| Rated Load | kg | 2500 |
| Bucket Width | mm | 2200 |
| Bucket Capacity | m³ | 1.3 |
| Overall Dimension | mm | 6400*2300*2950 |
| Operating Weight | kg | 6400 |
| Max. Dumping Height | mm | 3600 |
| Max. Dumping Distance | mm | 1000 |
| Wheel Base | mm | 2700 |
| Wheel Tread | mm | 1660 |
| Engine | Yuchai | |
| Rated Power | kw | 85 |
| Rated Speed | r/min | 2200 |
| Tire Size | 16/70-24 |
