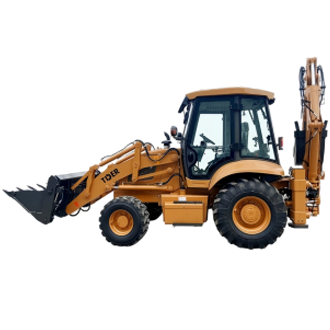

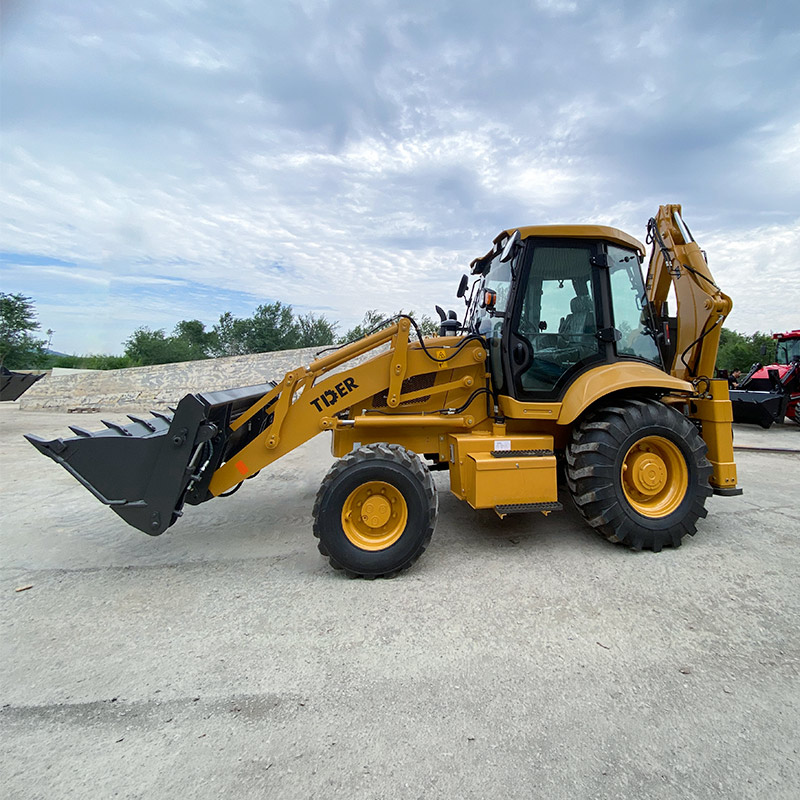

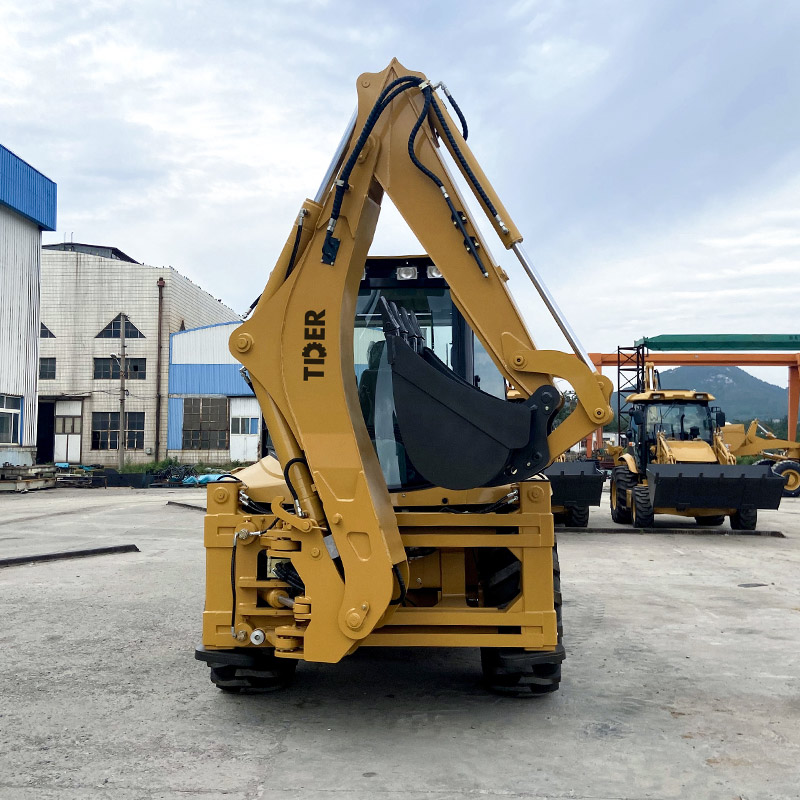

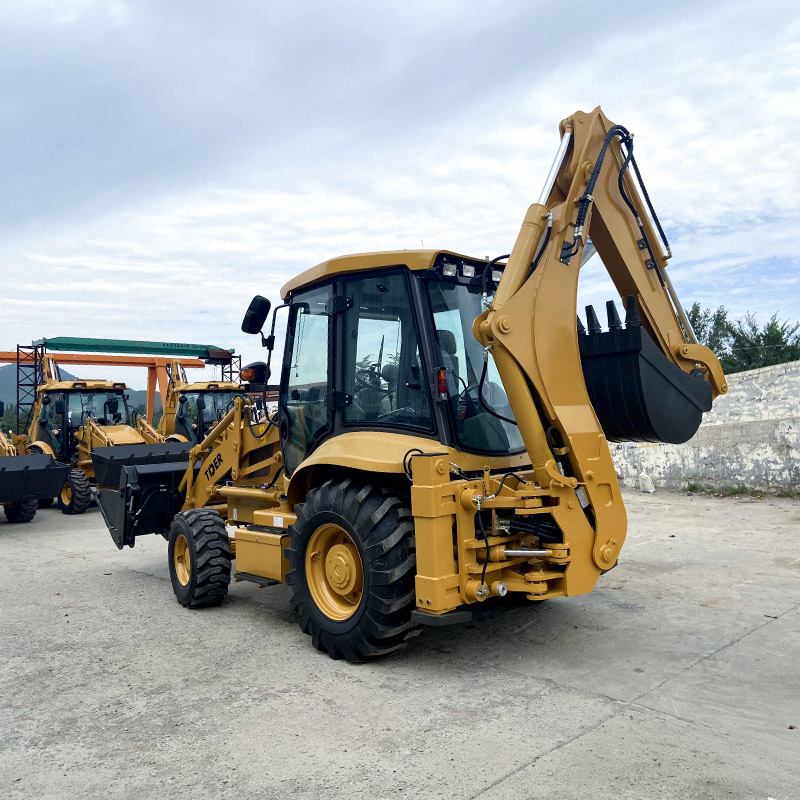

Name: 2.5 Ton Construction Backhoe Loader with Carraro Transmission
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

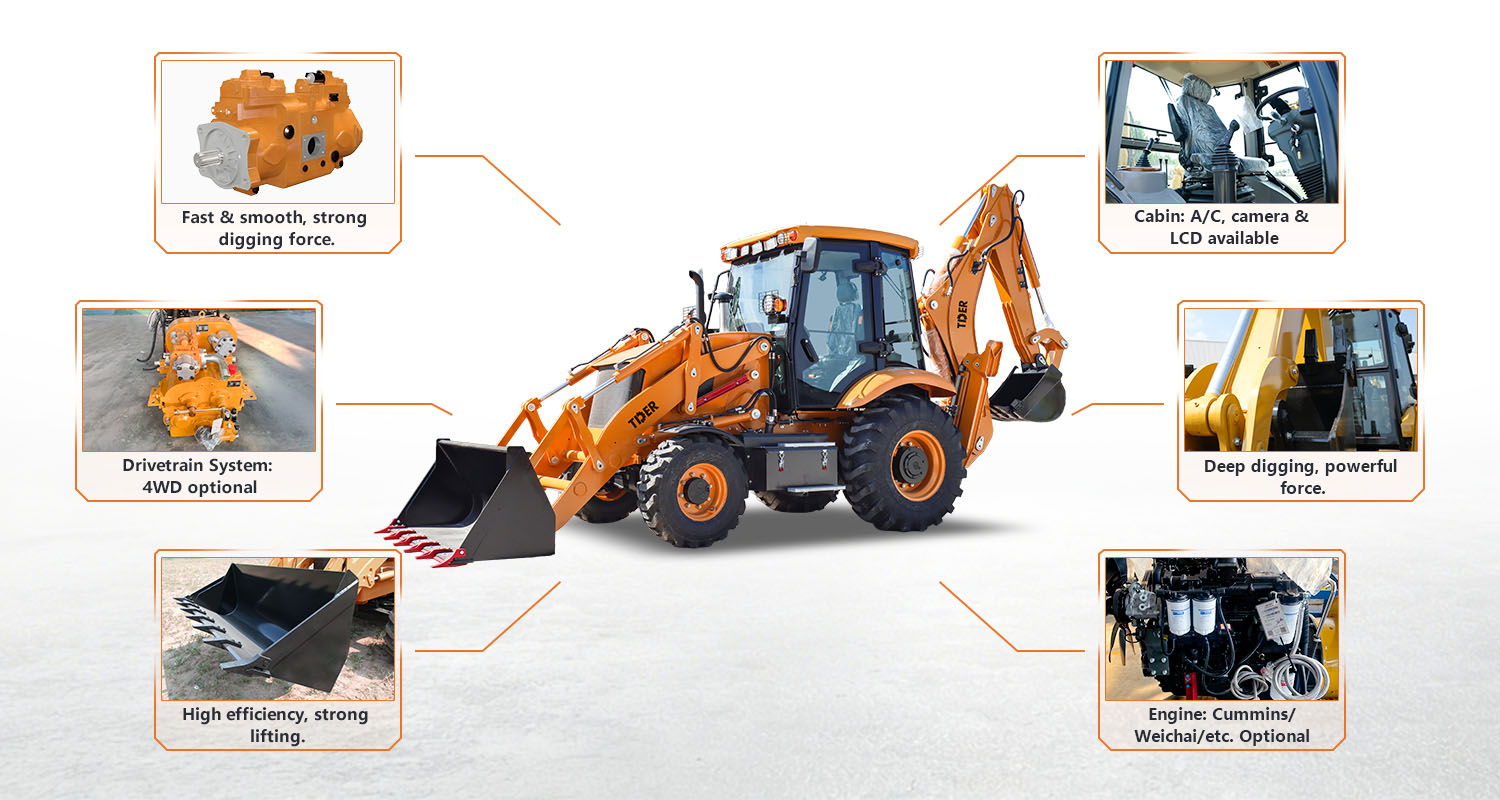

Features

Operator Comfort & Safety Cabin

ROPS protective cabin with air conditioning provides a spacious and well-structured working environment with excellent visibility. The ergonomic layout reduces operator fatigue during long working hours while improving safety awareness in complex jobsite conditions.

Reliable Weichai Power System with Cold Start Capability

The high-performance Weichai diesel power system with engine preheating ensures stable starting and consistent output in low-temperature and harsh working environments. It delivers smooth power response with balanced fuel efficiency for all-day operation.

Flexible Control System

Standard mechanical control levers offer simple and reliable operation, while an optional pilot control system provides lighter handling and higher precision. This dual control design adapts to different operator preferences and working conditions.

Intelligent LCD Monitoring System

A high-definition LCD display provides real-time monitoring of key machine parameters with a clear and intuitive interface. It improves operational awareness and allows operators to manage machine status more efficiently during work cycles.

Multi-Terrain Stability System

Standard A-type outriggers ensure stable support on uneven ground, while optional H-type outriggers enhance lateral stability and enable side-shift digging capability. This improves adaptability in narrow and confined jobsite environments.

Carraro Heavy-Duty Drivetrain

Equipped with an Italian Carraro axle and transmission system, the machine delivers efficient power transfer and strong traction performance. It ensures durability and reliability under continuous heavy-load working conditions.

Enhanced Jobsite Visibility & Safety

Equipped with warning light and rear-view monitoring system, the machine improves jobsite awareness and reduces blind spots. It enhances operational safety in busy construction environments.

Specifications

Operating Weight	kg	8200
Overall Dimensions	mm	615022503763
Wheelbase	mm	2264
Min Ground Clearance	mm	300
Breaking Force	kN	38
Loading Capacity	kg	2500
Front Bucket Capacity	m³	1
Stick Height	mm	2650
Stick Distance	mm	1025
Digging Height	mm	3878
Rear Bucket Capacity	m³	0.3
Max Digging Depth	mm	4085
Excavator Bucket Digging Force	kN	46.5
Excavator Stick Digging Force	kN	31
Excavator Stick Angle	掳	190
Max Towing Force	kN	39
Engine Brand		Duetz WP4G95E221
Type		In-line six-cylinder turbocharged
Number of Cylinders-Bore*Stroke		4-105*130
Rated Power		70kw/95HP
Max Torque	N·m/rpm	380 N·m/1400~1600rpm
Displacement	L	4.5L
Rated Speed	r/min	2200
Specific Fuel Consumption	g/kw.h	230g/Kw.h
Steering System Model		BZZ5-250
Steering Angle	°	±36
Min Turning Radius	mm	6581
System Pressure	MPa	12
Loading Hydraulic System Pressure	MPa	16
Excavating Hydraulic System Pressure	MPa	18
Axle Brand		Carraro (Italy)
Drive Axle Capacity	t	4/18.5
Front Axle Dynamic/Static Rating	t	9T/22.5T
Rear Axle Dynamic/Static Rating	t	7.5T/18.5T
Torque Converter		YJ280
Transmission		TLB14WD
Type		Fixed-shaft power splitter electronic control
Max Speed	km/h	38
Service Brake		Wet multi-plate brake
Parking Brake		Spring brake/hydraulic release
Tires		14-17.5/19.5L-24

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

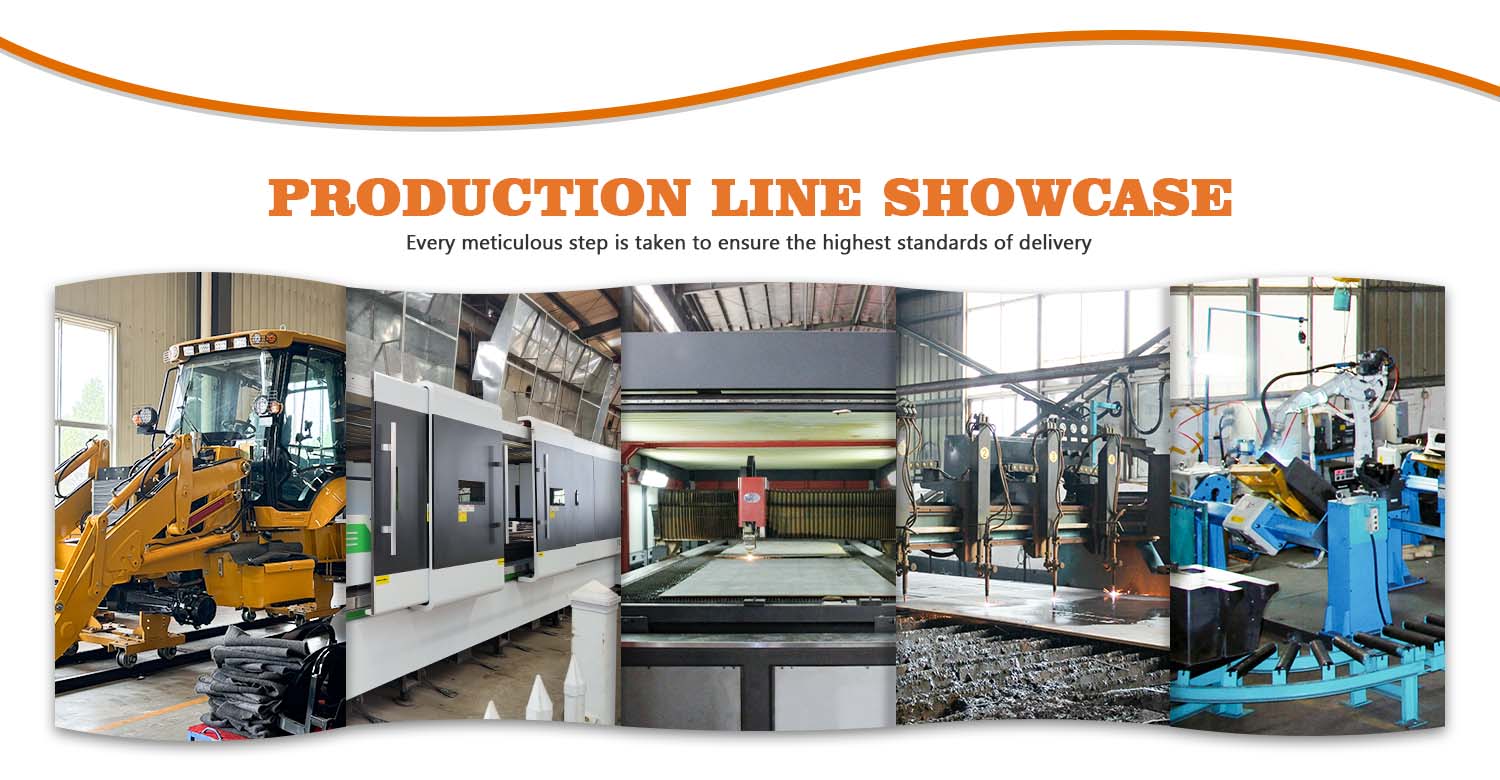

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
