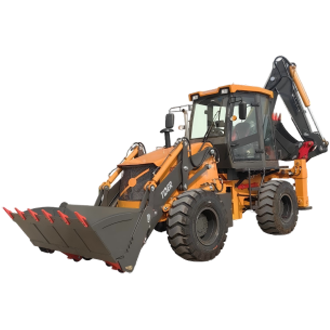

2.5 Ton Backhoe Loader
ZT30-25
Features
Premium Chaoyang Tire for International Reliability
Equipped with Chaoyang Tire, the machine benefits from a globally recognized tire brand known for durability, wear resistance, and stable performance under heavy-load and long-hour working conditions, improving safety and reducing replacement frequency.
Integrated Safety & Working Assistance System
Standard configuration includes front loader three-line hydraulic system, warning beacon, reverse camera, and boom safety guard, improving operational visibility, safety awareness, and protection during complex construction tasks.
Flexible Outrigger Configuration for Different Job Conditions
ZT30-25 supports both A-frame and H-type outrigger configurations, allowing users to select the most suitable stability system based on different working environments and load requirements, ensuring optimal balance between support strength and mobility.
Electro-Hydraulic Pilot Control for Precise Operation
The electro-hydraulic pilot control system significantly reduces operating effort while improving response accuracy. It allows smoother multi-function coordination and enhances efficiency during frequent loading and excavation cycles.
Optional Cable Lock for Excavation Arm Safety Control
The optional cable-operated locking system allows the operator to secure the excavator arm directly from the cab, improving convenience and reducing the need for manual intervention outside the machine. This enhances operational safety during transport, maintenance, and idle positioning, while improving workflow efficiency on busy job sites.
Specifications
| Overall Dimension（L×W×H） | mm | 5800*2268*3760 |
| Wheel Base | mm | 2370 |
| Min. Ground Clearance | mm | 300 |
| Min. Turning Radius | mm | 5000 |
| Operating Weight | kg | 7650 |
| Max.Speed | Km/h | 22 |
| Max. Climbing Capacity | ° | 35 |
| Digging Parameters | ||
| Max. Digging Depth | mm | 4000-5200 |
| Max. Digging Radius | mm | 5300/6600 |
| Max. Lifting Height | mm | 5880/7000 |
| Max. Dumping Height | mm | 4200/5000 |
| Backhoe Capacity | m³ | 0.3 |
| Loading Parameters | ||
| Max. Dumping Height | mm | 2770 |
| Max. Dumping Distance | mm | 925 |
| Bucket Capacity | m³ | 1 |
| Rated Load | kg | 2500 |
| Engine Model | Yudong4105 | |
| Rated Power | KW | 85 |
| Rated Speed | r/min | 2600 |
| Cylinders-Inside Diameter | 4-105 | |
| Gear Shift | F2/ R2 | |
| Tire Size | 16/70-20 | |
| Drive Type | Four-wheel drive | |
| Transmission Type | Hydrodynamic transmission | |
| Operating System | Electro-hydraulic Pilot Control |

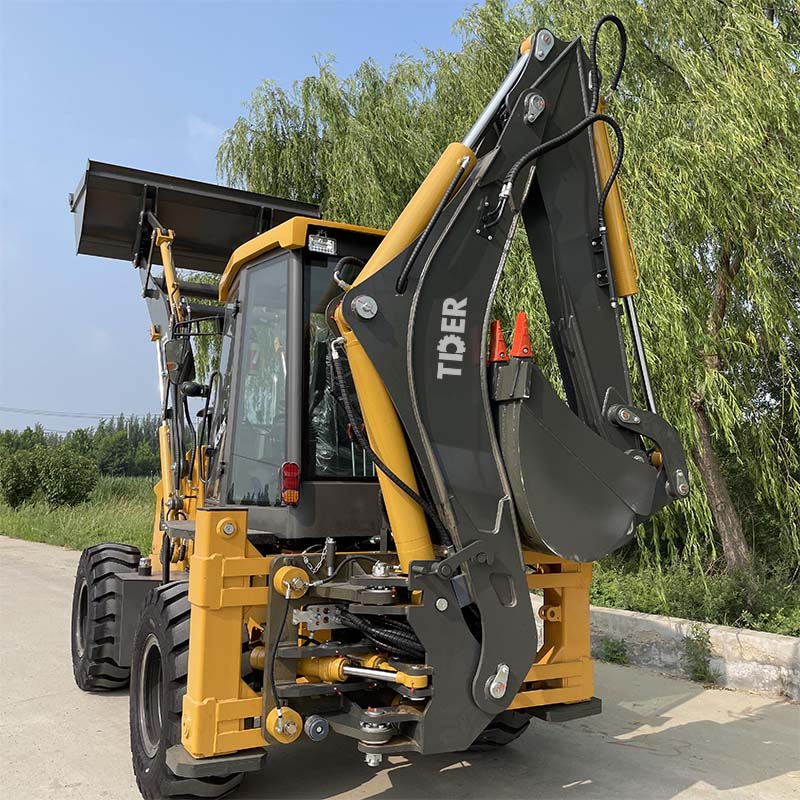

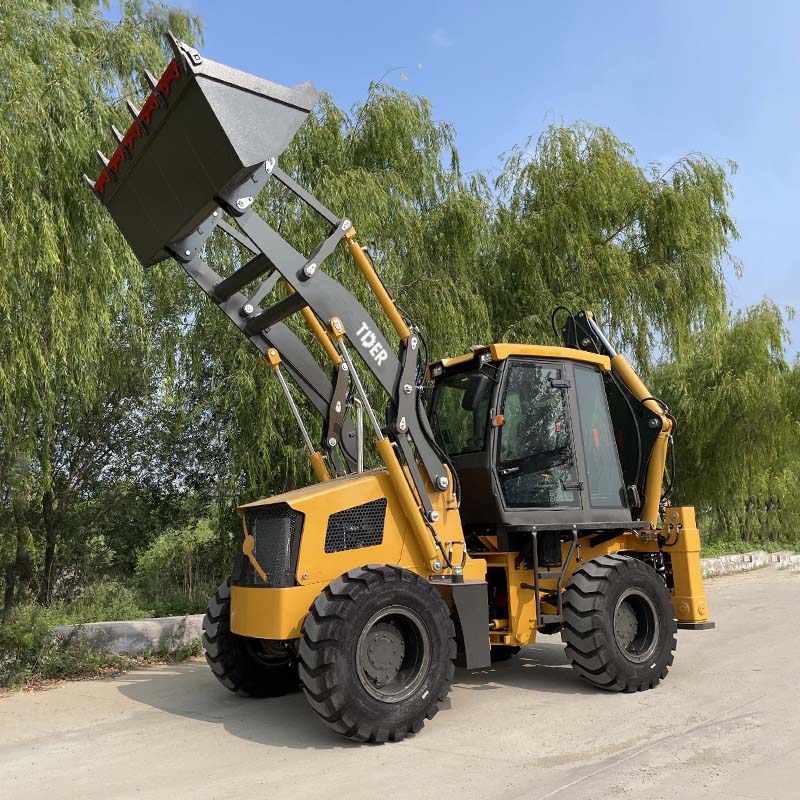

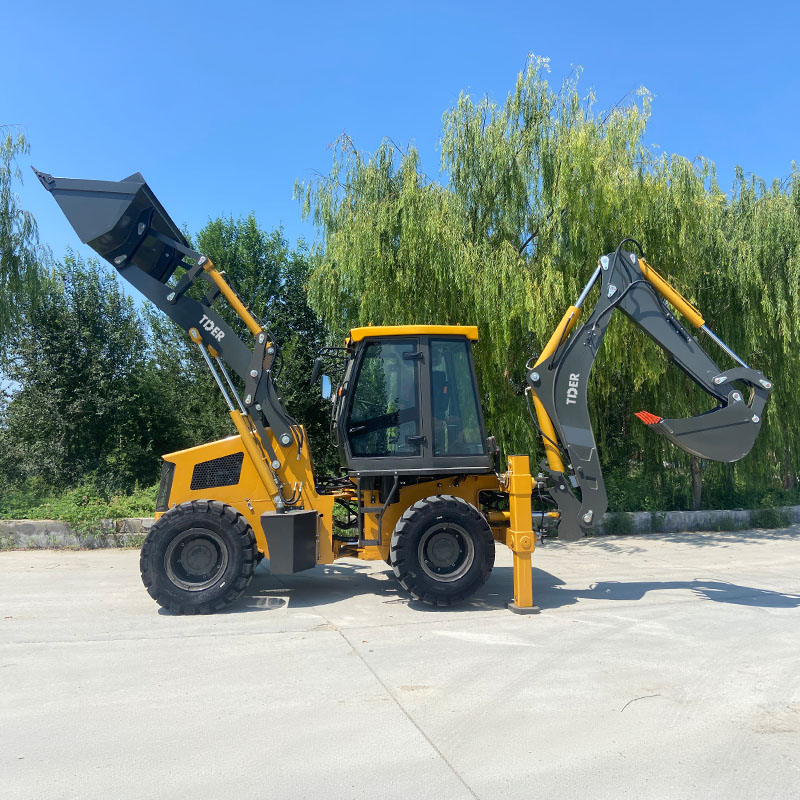

Product Showcase
