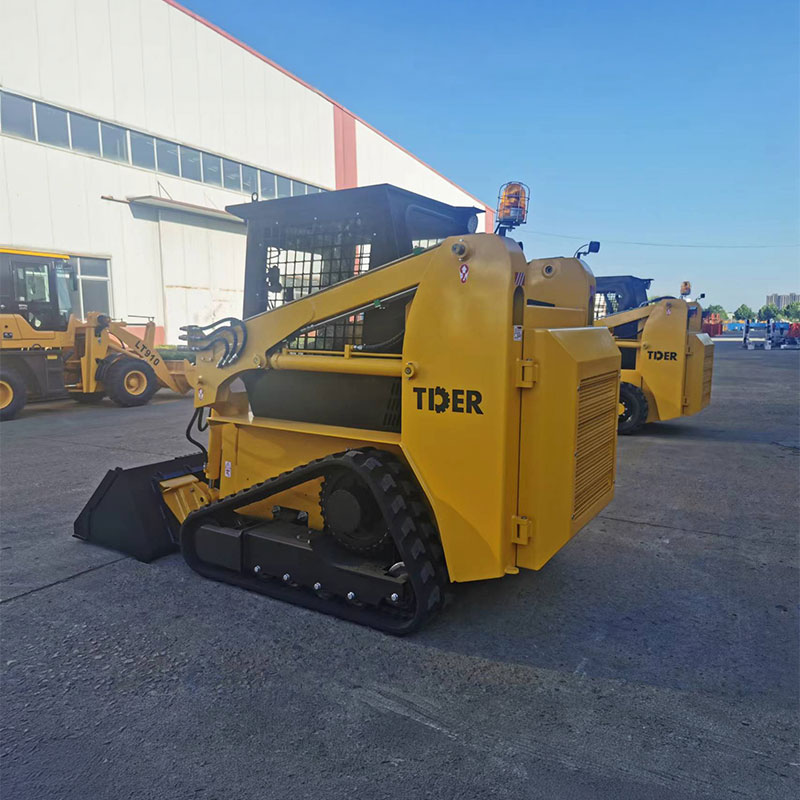

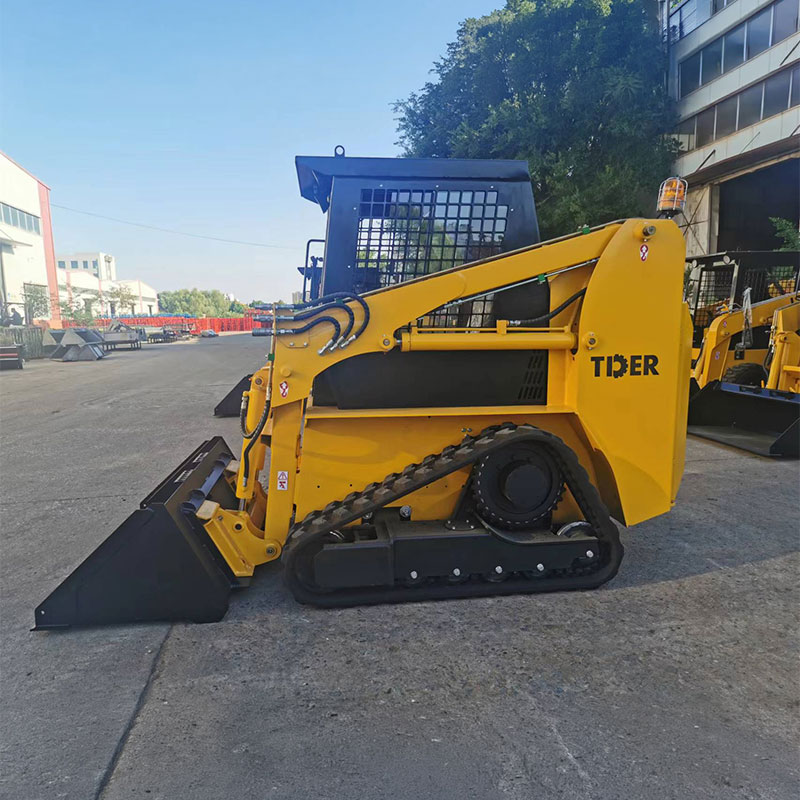

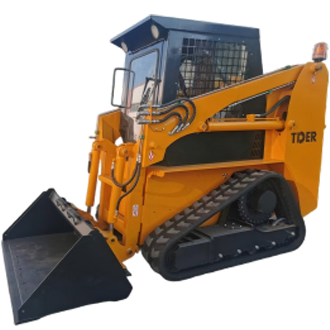

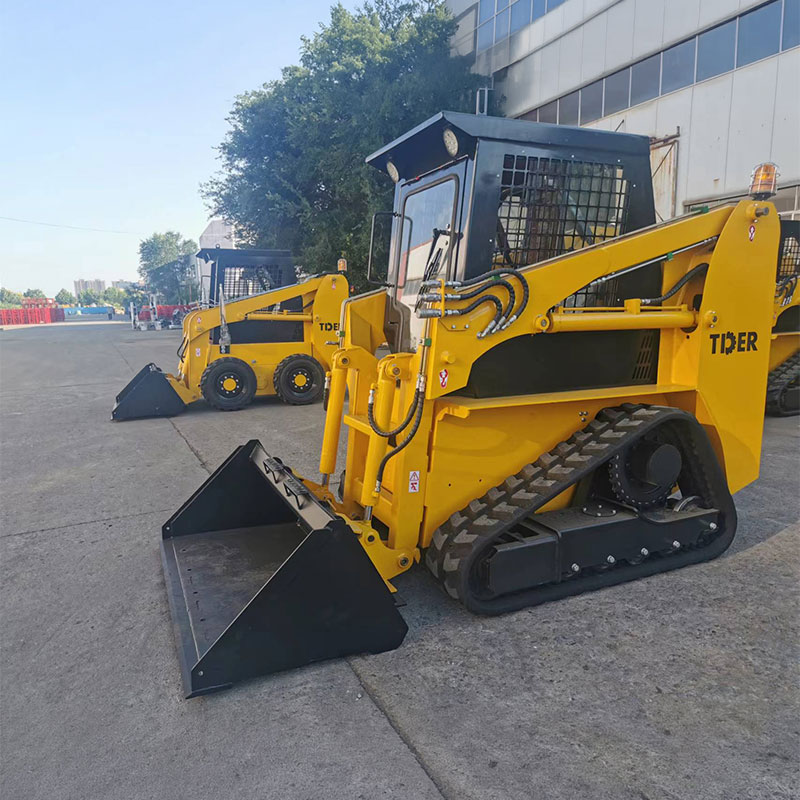

Name: 700kg Track Skid Steer Loader For Sale with ROPS Cab
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Heavy-Duty Operating Capacity with High Stability Frame Design

With a 700 kg rated operating load and a 3.0-ton class machine structure, the DS50 is engineered for higher productivity cycles. The reinforced chassis and optimized weight distribution allow stable lifting performance even at full bucket reach, improving safety during loading, stacking, and material transport operations.

High-Flow Hydraulic System Built with Premium European Components

The hydraulic system integrates an Italian PWG pump and HB control valve, combined with an Ingine (Yining) travel motor, ensuring smooth multi-function coordination under load. This configuration improves response accuracy during lifting, driving, and attachment operations, especially in simultaneous movement conditions commonly required on construction sites.

Enclosed ROPS Cab for Operator Protection and Comfort

A standard ROPS-certified enclosed cab significantly improves operator safety and working comfort. It reduces noise, dust intrusion, and vibration exposure. Optional air conditioning, air-suspension seat, and rear-view camera system further enhance visibility and comfort, aligning with modern occupational safety expectations in construction machinery.

Dual-Speed Travel System for Flexible Working Efficiency

Equipped with a dual-speed motor, the DS50 can switch between high-torque low-speed operation and faster travel mode. This allows operators to balance precision work and site relocation efficiency, reducing idle time and improving overall productivity in large jobsite applications.

Reinforced Hydraulic System Design for Long-Term Durability

High-strength steel-braided hoses and optimized routing layout reduce internal stress and wear, ensuring stable hydraulic pressure and long service life without leakage risks. This design improves reliability under high-pressure continuous operation, especially in multi-shift working environments.

Specifications

Operating Load	Kg	700
Max Speed	Km/H	10
Rated Flux	L/Min	60
High Flow Flux	L/Min	/
Tire Model		300X52.5
Self Weight Bucket	Kg	3000
Bucket Capacity	M³	0.3
Overall Operating Height	mm	3350
Hheight To Top Of Cab	mm	2050
Without Bucket Length	mm	2300
Overall Length With Bucket	mm	2950
Dumping Height	mm	2100
Width	mm	1402
Bucket Width	mm	1500
Height To Bottom Of Level Bucket	mm	2603
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	2770
Dumping Reach	mm	790
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	104
Wheelbase	mm	1240
Ground Clearance	mm	140
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	1064
Front Tuning Radius	mm	1825
Rear Tuning Radius	mm	1264
Rear Axle To Bumper	mm	594
Tread Width	mm	1102
Engine		Xinchai C490BPG
Rated Power	Kw	36.7
Fuel Tank Capacity	L	50

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
