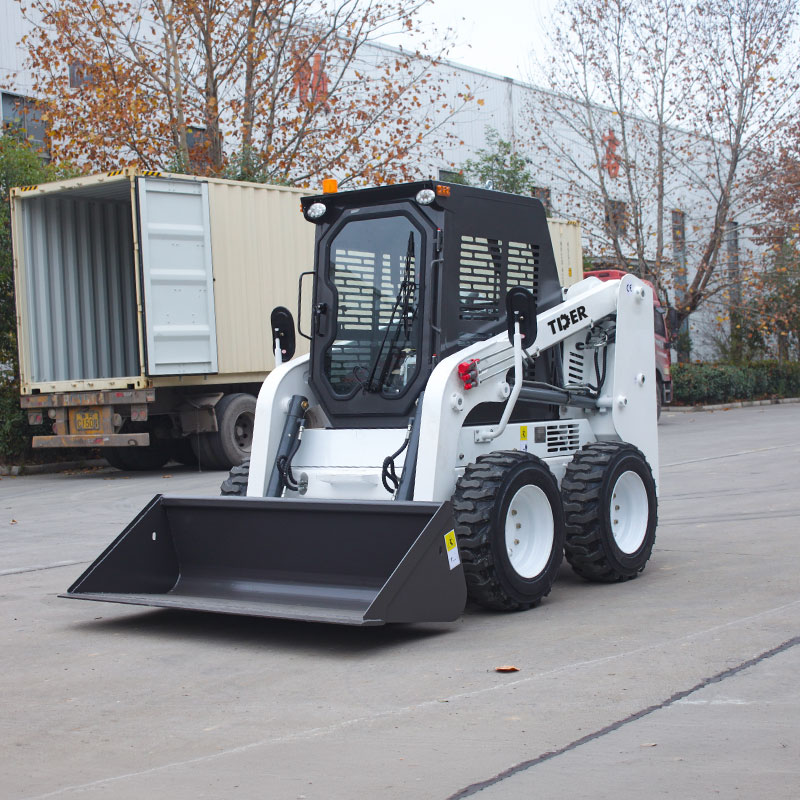

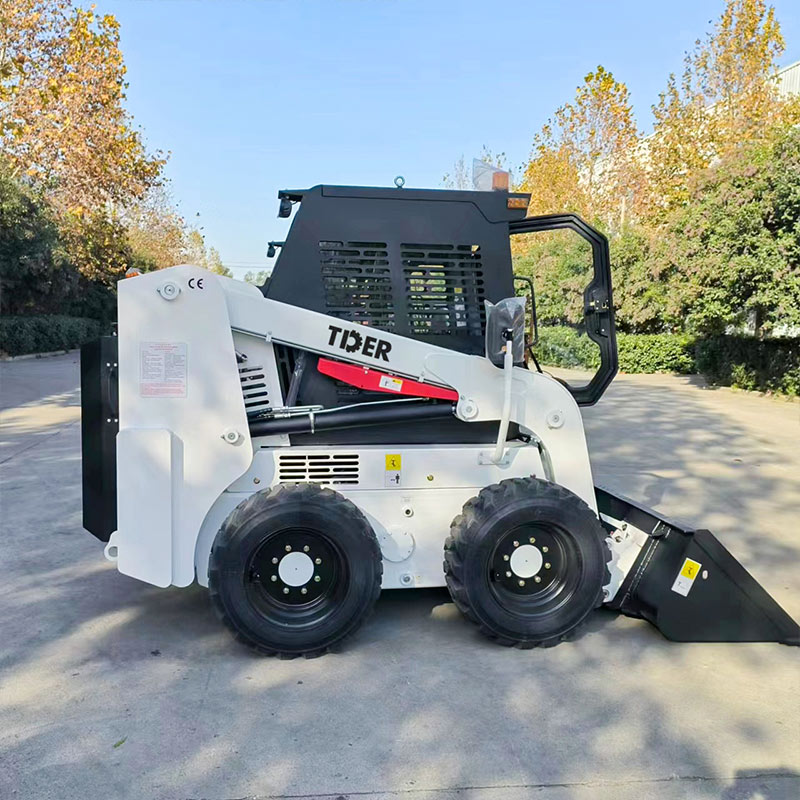

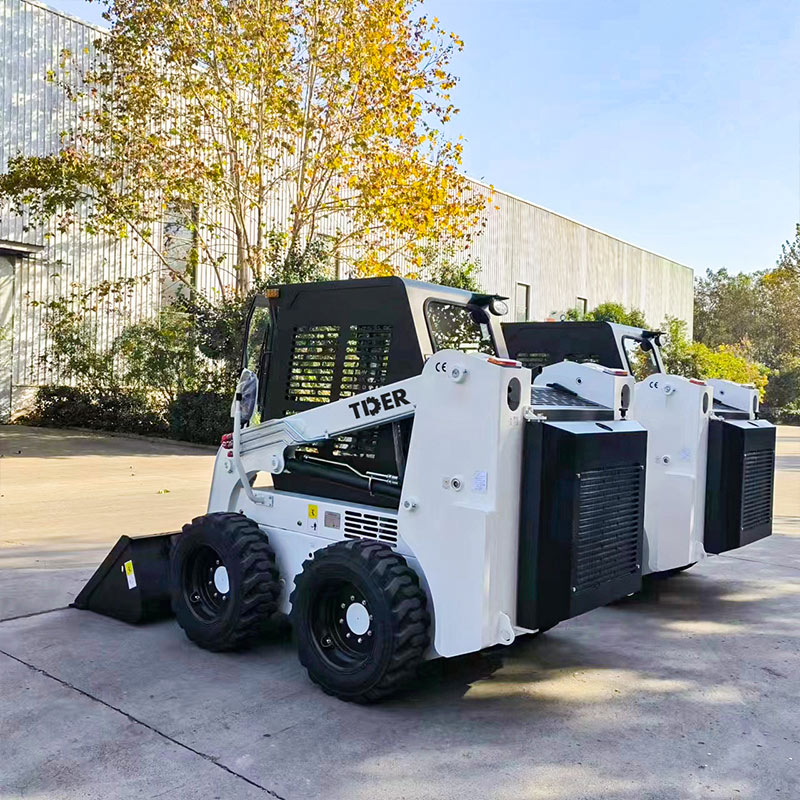

830kg Skid Steer Loader
TDS60
Features
Flexible Engine Options for Easy Service & Global Support
TDS60 comes with a standard Quanchai QC498G engine (45kW) and supports optional engines such as Yanmar, Kubota, Kohler, and Euro V Xinchai engines. This multi-brand engine platform improves global service accessibility and spare parts availability, helping reduce downtime and simplifying long-term maintenance management.
Lower Long-Term Maintenance Cost
A large aluminum radiator system improves cooling efficiency and reduces overheating-related failures. Combined with a tubeless tire setup and quick coupler system, the machine reduces daily wear-related downtime, helping lower overall maintenance and service costs over its lifecycle.
Responsive Control System for Easy Handling
The manual control system works with a tuned hydraulic response, delivering stable and intuitive machine behavior for daily operation.
Built-in Safety & Operator Support Features
LED lighting, reversing camera, warning buzzer, and cooling fan work together to improve visibility, operating safety, and comfort in long-hour and low-light job site conditions.
Stable Performance & Lower Failure Rate
Equipped with Inlay hydraulic motor, servo piston pump, and valve system, the machine delivers stable hydraulic response with fewer performance fluctuations during continuous loading and multi-attachment operations. The simplified and matched hydraulic architecture helps reduce internal wear, improving long-term reliability.
Specifications
| Rated capacity | kg | 830 | |
| Rated flow | L/min | 80 | |
| High flow | L/min | --- | |
| Discharge height | mm | 2266 | |
| Discharge distance | mm | 662 | |
| Power type | Diesel | ||
| Control type | Manual control | ||
| Overall length with bucket | mm | 3348 | |
| Overall length without bucket | mm | 2522 | |
| Overall width with bucket | mm | 1800 | |
| Overall width without bucket | mm | 1730 | |
| Overall height | mm | 2070 | |
| Max. operating height | mm | 3910 | |
| Front turning radius | mm | 2027 | |
| Front turning radius without attachme | mm | 1380 | |
| Rear turning radius | mm | 1527 | |
| Wheel base | mm | 991 | |
| Tread | mm | 1465 | |
| Max. Speed | km/h | 11.2 | |
| Max. load | kg | 1660 | |
| Lifting type | Radius | ||
| Bucket capacity | M3 | 0.47 | |
| Total weight with bucket | kg | 3010 | |
| Tubeless tire | 10-16.5 | ||
| Engine model | Quanchai QC498G | ||
| Power | kw | 45 | |
| Rotate speed at rated power | rpm | 2500 | |
| Displacement | L | 4 | |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
