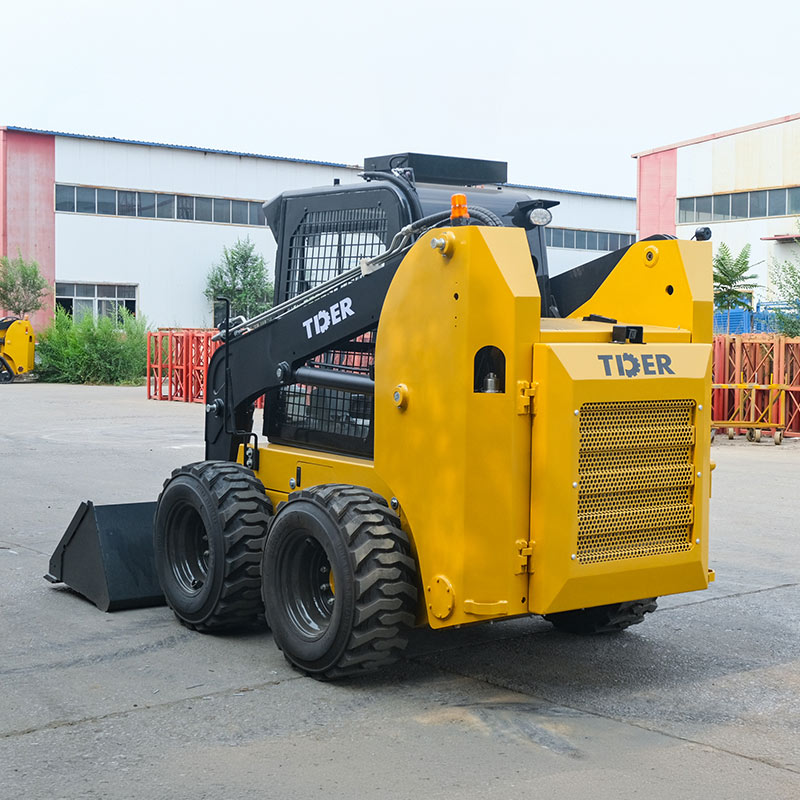

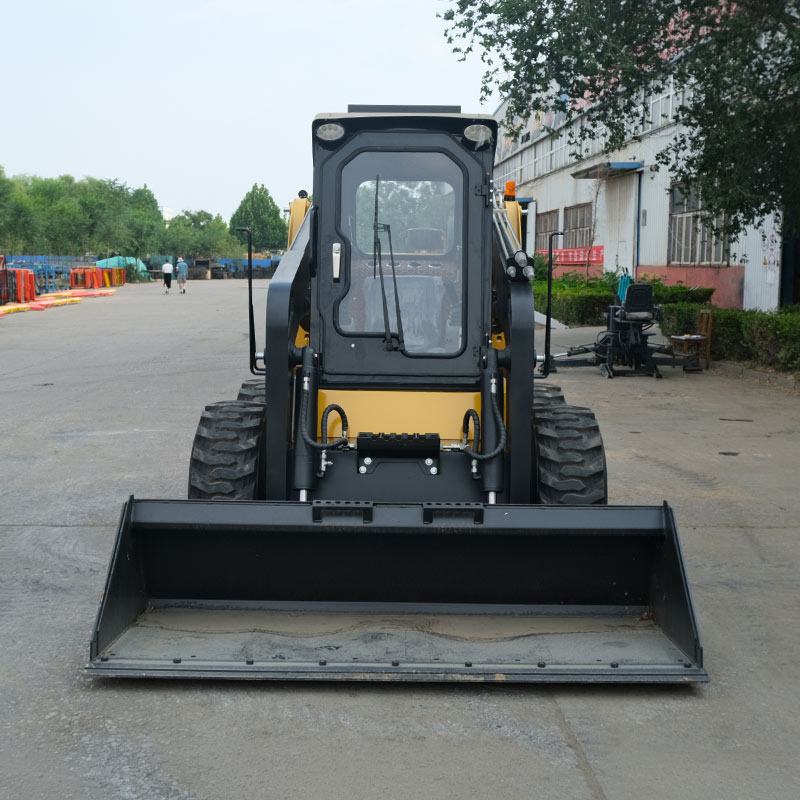

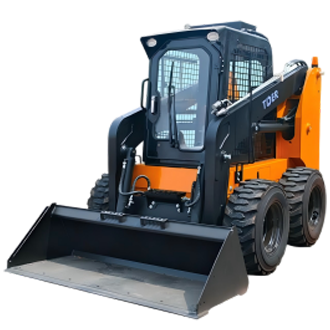

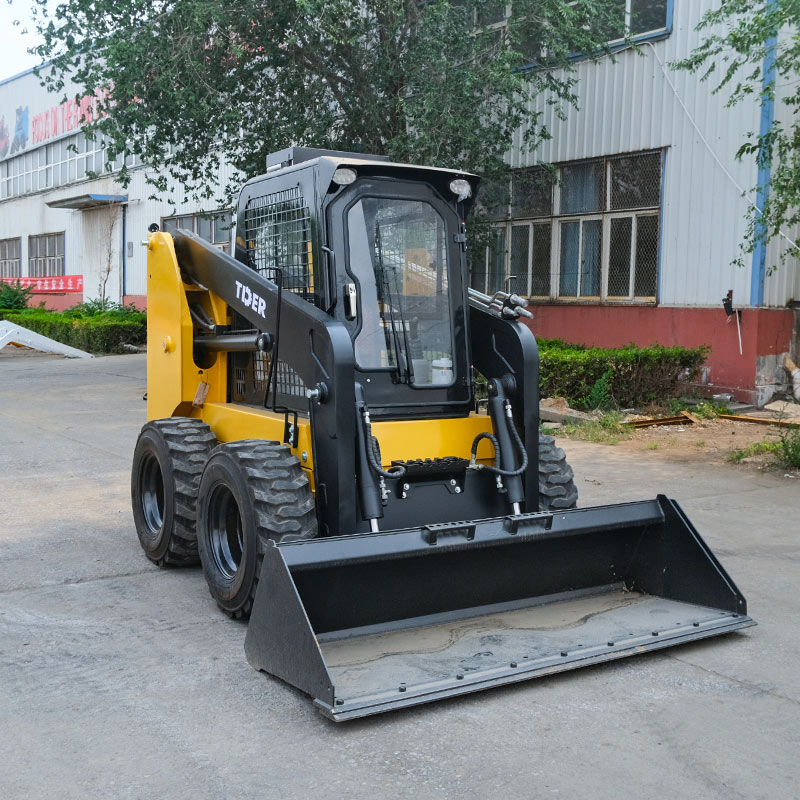

950kg Skid Steer Loader
TDS65
Features
Built-in Air Filtration System for Cleaner Operation Environment
A standard air filtration system helps reduce dust intake into the engine, improving engine protection and extending service life in dusty construction and mining environments.
Massive Capacity & Extended Reach
Standard 12-16.5 Advance tires provide strong load-bearing capacity and reliable traction in rough terrain, reducing downtime caused by tire wear or puncture issues.
Global Engine Choice for Reduced Risk & Easier Service
TDS65 is equipped with a standard Xinchai 55kW engine, while offering optional engines from globally recognized brands such as Cummins, Yanmar, Kubota, LS, and Euro V compliant Xinchai models.
For customers, choosing a well-known engine brand is not only about performance, but also about reducing long-term operational risk and ensuring easier local servicing.
New Optional Upgraded Cab for Operator Protection & Comfort
The standard enclosed cab structure provides protection from dust, wind, and harsh environments, helping operators maintain productivity during long working hours.
A new optional upgraded cab system further enhances comfort and visibility for higher-end working requirements.
Specifications
| Rated capacity | kg | 830 | |
| Rated flow | L/min | 80 | |
| High flow | L/min | --- | |
| Discharge height | mm | 2266 | |
| Discharge distance | mm | 662 | |
| Power type | Diesel | ||
| Control type | Manual control | ||
| Overall length with bucket | mm | 3348 | |
| Overall length without bucket | mm | 2522 | |
| Overall width with bucket | mm | 1800 | |
| Overall width without bucket | mm | 1730 | |
| Overall height | mm | 2070 | |
| Max. operating height | mm | 3910 | |
| Front turning radius | mm | 2027 | |
| Front turning radius without attachme | mm | 1380 | |
| Rear turning radius | mm | 1527 | |
| Wheel base | mm | 991 | |
| Tread | mm | 1465 | |
| Max. Speed | km/h | 11.2 | |
| Max. load | kg | 1660 | |
| Lifting type | Radius | ||
| Bucket capacity | M3 | 0.47 | |
| Total weight with bucket | kg | 3010 | |
| Tubeless tire | 10-16.5 | ||
| Engine model | Quanchai QC498G | ||
| Power | kw | 45 | |
| Rotate speed at rated power | rpm | 2500 | |
| Displacement | L | 4 | |
