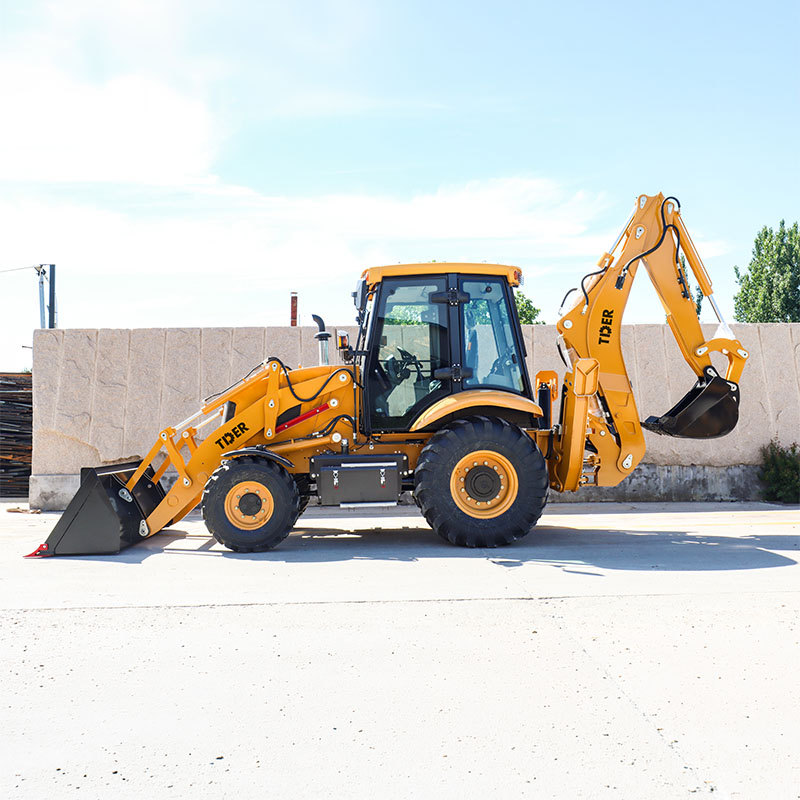

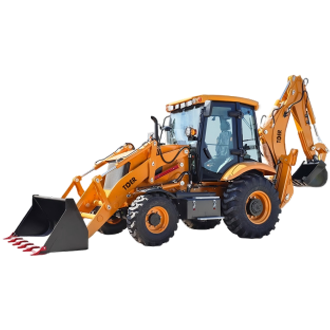

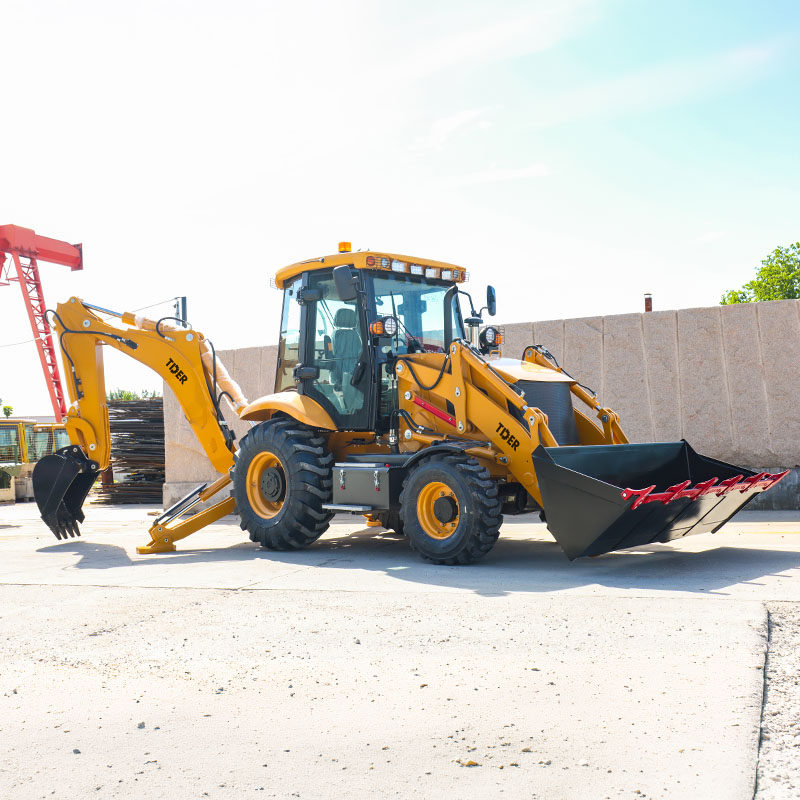

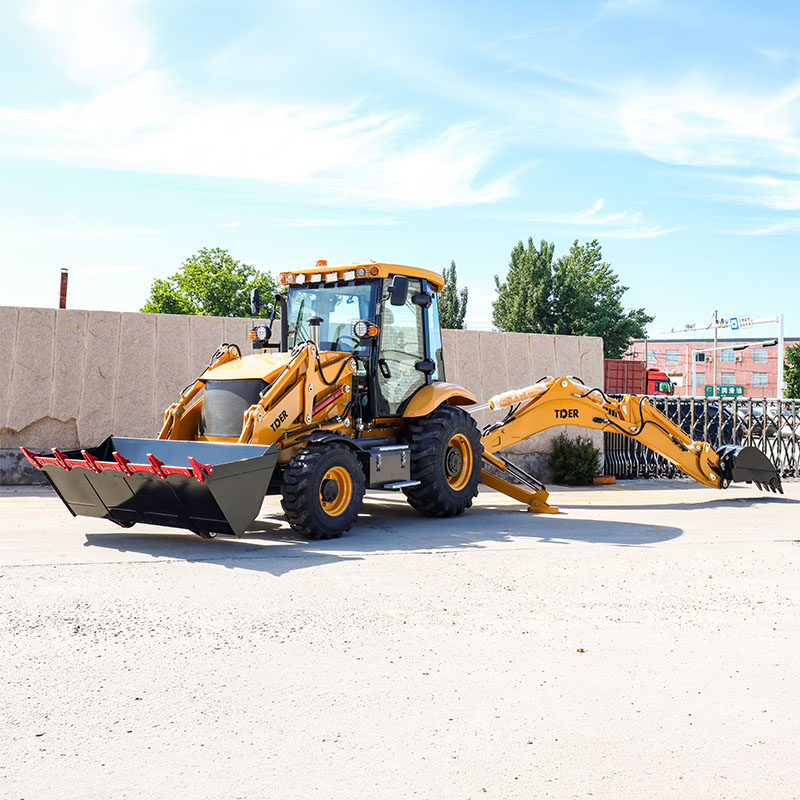

New Design 2.5 Ton Backhoe Loader
ZT388-Ⅰ
Features
High-Torque Yuchai Engine with Global Upgrade Options
The machine is powered by a 75kW diesel engine from Yuchai, delivering strong torque output and stable performance under heavy-duty loading and excavation conditions. The 4-cylinder high-displacement design improves combustion efficiency and ensures consistent power delivery during long working cycles.
For global markets, the engine platform supports upgrades to Euro V emission standards and offers optional configurations from Cummins and Perkins, allowing the machine to meet stricter environmental regulations and higher-end project requirements.
Double-Layer Reinforced Boom for Heavy-Duty Durability
The upgraded double-layer boom improves rigidity and resistance to bending forces, ensuring stable performance during heavy digging and loading cycles.
Widened Cabin for Better Comfort and Visibility
The enlarged operator cabin provides improved visibility and a more comfortable working environment, reducing fatigue during long-hour operations.
Enhanced Stability, Traction & Durability Performance
The front-small and rear-large tire configuration is designed to optimize machine balance and working performance. Smaller front tires improve steering flexibility and maneuverability in confined job sites, while larger rear tires enhance load-bearing capacity, traction, and overall stability during heavy-duty loading and excavation operations.
The vacuum tire structure further improves puncture resistance and air retention stability, reducing downtime and maintenance frequency during continuous work.
Specifications
| Overall Dimensions | Dimensions (mm) | 6150*2350*3763 |
| Wheel base (mm) | 2200 | |
| Track (mm) | 1850/2000 | |
| Minimum Ground Clearance (mm) | 300 | |
| Minimum Turning Radius (mm) | 6580 | |
| Performance Parameters | System Pressure (Mpa) | 28 |
| Total Weight (kg) | 7400/8400 | |
| Maximum Speed (Km/h) | 38 | |
| Maximum Climbing Ability (°) | 35 | |
| Excavation Parameters | Maximum Telescopic Excavation Depth (mm) | 4000/5200 |
| Excavation Unloading Height (mm) | 4500/5300 | |
| Maximum Excavation Radius (mm) | 4800/6000 | |
| Maximum Lifting Height (mm) | 5200/5950 | |
| Bucket Capacity (m³) | 0.3 | |
| Maximum Excavation Force (KN) | 36 | |
| Maximum Bucket Excavation Radius (mm) | 840 | |
| Excavator Rotation Angle (°) | 190 | |
| Loading Parameters | Maximum Unloading Height (mm) | 2742 |
| Maximum Unloading Distance (mm) | 1062 | |
| Bucket Capacity (m³) | 1.2 | |
| Lifting Force (KN) | 72 | |
| Engine | Model | Yuchai |
| Rated Power (KW) | 75 | |
| Rated Speed (r/min) | 2600 | |
| Cylinders-Bore (mm) | 4-105 | |
| Transmission System | Gearbox | Mechanical Shift Transmission |
| Number of Gears | 4 Forward, 4 Reverse | |
| Liquid Torque Converter | Qingzhou JDN-280 | |
| Axle | Brand | Yunyu |
| Tires | 14-17.5/19.5L-24 | |
| Driving Brake | Air Over Hydraulic Disc Brake | |
| Parking Brake | Air Brake | |
| Oil Capacity | Fuel Tank (L) | 100 |
| Hydraulic Oil Tank (L) | 100 | |
| Others | Drive Type | Four-wheel Drive |
| Transmission Type | Liquid Transmission | |
| Control System | Electromagnetic Hydraulic Pilot Control |
